9080LBC363101 Schneider Electric Industrial Automation Components

9080LBC363101 on Powermatic Associates
Schneider Electric

Part#:9080LBC363101

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

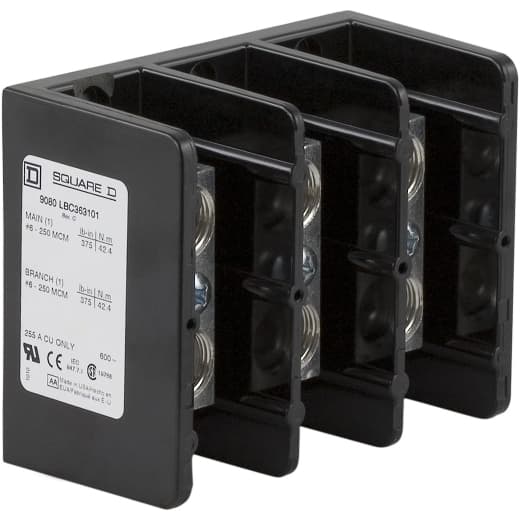

Schneider Electric - 9080LBC363101

Product Details

  • Voltage Rating
    600 V AC/DC
  • Height
    4 in (101.60 mm)
  • Range
    9080LB
  • Block Material
    Phenolic block
  • SCCR
    100 kA UL 508 A
  • Mounting Type
    Surface mount
  • Width
    5 in (127.00 mm)
  • Current Rating
    255 A copper
  • Electrical Connection
    Tin plated copper lugs
  • Depth
    2.61 in (66.29 mm)
  • Product
    Power Distribution Block
  • Ambient Air Temperature For Operation
    -40…302 °F (-40…150 °C)
  • End Barrier
    9080LB33
  • Number Of Poles
    3
  • Wire Stripping Length
    Line 1.19 in (30.23 mm) Load 1.19 in (30.23 mm)
  • Terminals Per Pole
    1 line 1 load
  • Wire Size
    Line 1, AWG 6...250 kcmil, copper Load 1, AWG 6...250 kcmil, copper
  • Terminal Tightening Torque
    Line lug 375 lbf.in (42.37 N.m) AWG 6...250 kcmil copper or aluminium Load lug 375 lbf.in (42.37 N.m) AWG 6...250 kcmil copper or aluminium

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9080LBC363101 on Powermatic Associates is $281.41. Order now.

9080LBC363101 Related Documents

Catalog-1631036837729.pdfProduct Datasheet-1631036837726.pdf
