Part#:9422ATEF101

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

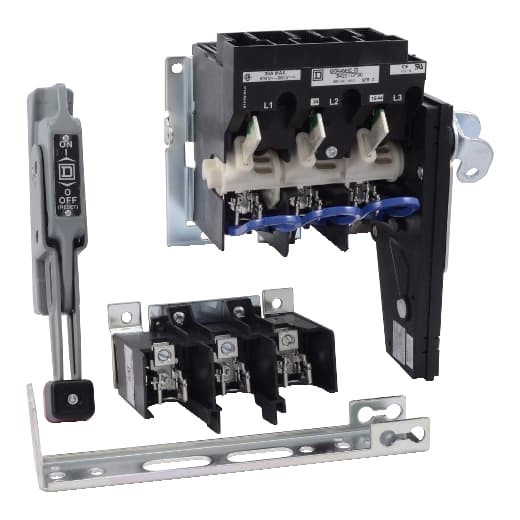

Product description

Schneider Electric - 9422ATEF101

Product Details

  • Range
    9422T
  • Disconnect Type
    Fusible disconnect switch
  • Current Rating
    100 A
  • Fuse Rating
    100 A 250/600 V
  • Handle Type
    6 in handle included NEMA 1/3/3R/4 enclosures sheet steel
  • Product
    Disconnect Switch
  • Mounting Type
    Flange rod variable depth
  • Fuse Type
    R H K J
  • Horsepower Rating
    25 hp 200 V AC 30 hp 230 V AC 60 hp 460 V AC 75 hp 575 V AC 20 hp 250 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9422ATEF101 on Powermatic Associates is $1,193.63. Order now.
