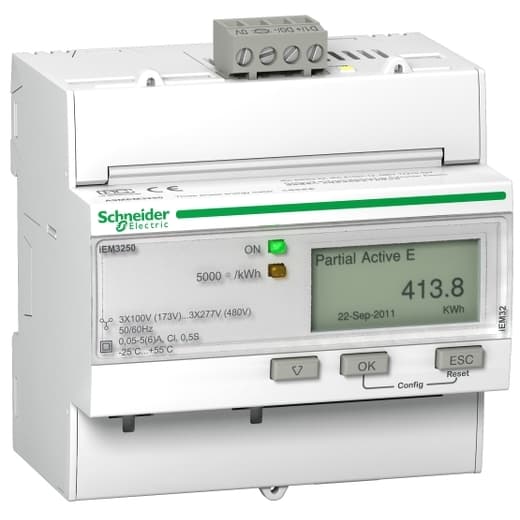

A9MEM3250 Schneider Electric Industrial Automation Components

Product Details

• Maximum Value Measured
  99999999 MWh
• Overvoltage Category
  III
• Input Type
  external CT 1 A or 5 A
• Device Short Name
  IEM3250
• Communication Port Protocol
  Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none 4000 V
• Measurement Current
  1…32767000 mA
• Mounting Support
  DIN rail
• Range Of Product
  Acti 9 iEM3000
• Number Of Outputs
  0
• Display Type
  LCD display
• Number Of Inputs
  0
• Range
  Acti 9
• Technology Type
  Electronic
• Communication Port Support
  Screw terminal block RS485
• Product Or Component Type
  Energy meter
• Sampling Rate
  32 samples/cycle
• Mounting Mode
  Clip-on
• Line Rated Current
  5 A 1 A
• Network Frequency
  50 Hz 60 Hz
• Device Application
  Sub billing Partial meter
Rated Voltage
100…277 V 173…480 V
Connections - Terminals
Current circuit screw terminals 0.01 in² (6 mm²) Voltage circuit screw terminals 0.00 in² (2.5 mm²)
Accuracy Class
Class 0.5S active energy conforming to IEC 62053-22 Class 0.5S active energy IEC 61557-12 Class C active energy EN 50470-3
Local Signalling
Green indicator light power ON Yellow flashing LED accuracy checking Yellow indicator light communications are active on the Modbus port (Modbus)
Poles Description
3P 3P + N 1P + N
Type Of Measurement
Active energy Current Voltage Active power
Standards
IEC 61557-12 IEC 62053-22 IEC 61036 IEC 62053-23 UL 61010-1 IEC 61010
Product Certifications
CE IEC 61010 safety) CE EN 61557-12 power monitor) CE IEC 61326-1 EMC) CULus UL 61010 safety) CULus ANSI C12.20 sub-meter) EAC sub-meter) RCM NMI M 6-1 sub-meter) UL
