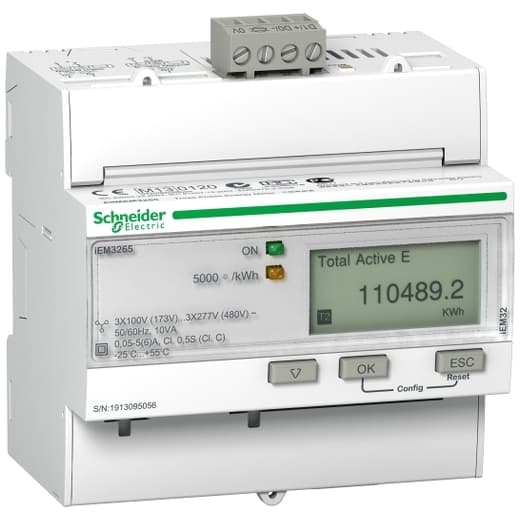

A9MEM3265 Schneider Electric Industrial Automation Components

Product Details

• Range
  Acti 9
• Sampling Rate
  32 samples/cycle
• Number Of Outputs
  1 digital (static)
• Device Short Name
  IEM3265
• Communication Port Protocol
  BACnet 9.6, 19.2, 38.4, 57.6, 76.8 kbauds 4000 V
• Product Or Component Type
  Energy meter
• Display Type
  LCD display
• Mounting Support
  DIN rail
• Metering Type
  Active, reactive, apparent energy (signed, four quadrant)
• Measurement Current
  1…32767000 mA
• Mounting Mode
  Clip-on
• Range Of Product
  Acti 9 iEM3000
• Output Voltage
  5...40 V DC@50 mA
• Tariff Input
  Tariff 4)
• Communication Port Support
  Screw terminal block RS485
• Technology Type
  Electronic
• Input Type
  external CT 1 A or 5 A
• Maximum Value Measured
  99999999 MWh
• Number Of Inputs
  1 digital 0...5 V/11...40 V 24 V DC
• Overvoltage Category
  III
Line Rated Current
5 A 1 A
Network Frequency
60 Hz 50 Hz
Rated Voltage
100…277 V 173…480 V
Connections - Terminals
Current circuit screw terminals 0.01 in² (6 mm²) Voltage circuit screw terminals 0.00 in² (2.5 mm²)
Local Signalling
Green indicator light power ON Yellow flashing LED accuracy checking alarm overload
Device Application
Sub billing Partial meter Multi-tariff
Poles Description
3P 1P + N 3P + N
Accuracy Class
Class 0.5S active energy conforming to IEC 62053-22 Class 0.5S active energy IEC 61557-12 Class C active energy EN 50470-3
Type Of Measurement
Active and reactive energy Active and reactive power Current Voltage
Standards
IEC 61557-12 IEC 62053-23 UL 61010-1 IEC 62053-22 IEC 61036 IEC 61010
Product Certifications
CE IEC 61010 safety) CE EN 61557-12 power monitor) CE IEC 61326-1 EMC) CULus UL 61010 safety) CULus ANSI C12.20 sub-meter) EAC sub-meter) RCM NMI M 6-1 sub-meter) UL MID EN 50470-3 sub-meter) MID EN 62052 sub-m
