A9MEM3455 Schneider Electric Industrial Automation Components

Product Details

• Sampling Rate
  32 samples/cycle
• Device Short Name

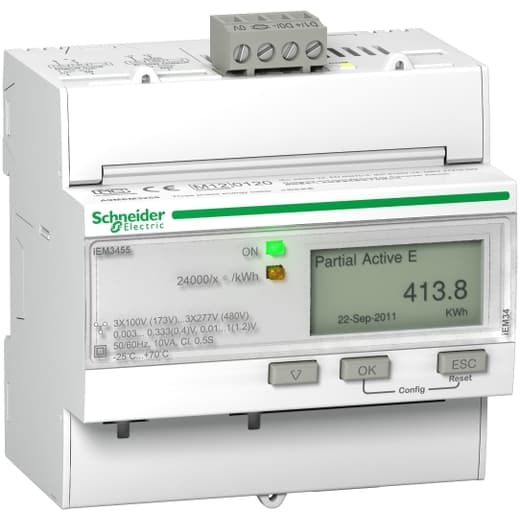

  IEM3455
• Communication Port Protocol
  Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none
• Range
  Acti 9
• Range Of Product
  Acti 9 iEM3000
• Product Or Component Type
  Energy meter
• Metering Type
  Active, reactive, apparent energy (signed, four quadrant)
• Technology Type
  Electronic
• Display Type
  LCD display
• Mounting Mode
  Clip-on
• Measurement Current
  1…32767000 mA
• Tariff Input
  Tariff 4)
• Input Type
  split core current transducer 0.333 V or 1 V
• Number Of Inputs
  1 digital 0...5 V/11...40 V 24 V DC
• Number Of Outputs
  1 digital (static)
• Mounting Support
  DIN rail
• Communication Port Support
  Screw terminal block RS485
• Output Voltage
  5...40 V DC@50 mA
• Rated Voltage
  100…277 V +/- 20 % 173…480 V +/- 20 %
• Network Frequency
  60 Hz 50 Hz
Accuracy Class
Class 0.5S active energy conforming to IEC 62053-22 Class 0.5S active energy ANSI C12.20
Maximum Value Measured
99999999.9 kWh 99999999 MWh
Device Application
Sub billing Multi-tariff Partial meter
Poles Description
3P + N 1P + N 3P
Type Of Measurement
Active and reactive energy Active and reactive power Current Voltage
Connections - Terminals
Current circuit screw terminals 0.01 in² (6 mm²) Voltage circuit screw terminals 0.00 in² (2.5 mm²) Input/output circuit screw terminals 0.00 in² (1.5 mm²) Communication screw terminals 0.00 in² (2.5 mm²)
Tightening Torque
Input/output circuit 4.43 lbf.in (0.5 N.m) Philips Voltage circuit 4.43 lbf.in (0.5 N.m) Philips Current circuit 7.08 lbf.in (0.8 N.m) pozidriv Communication 4.43 lbf.in (0.5 N.m) Philips
Local Signalling
Green indicator light power ON Yellow flashing LED accuracy checking alarm overload Yellow indicator light communications are active on the Modbus port (Modbus)
Wire Stripping Length
Input/output circuit 0.24 in (6 mm) Voltage circuit 0.31 in (8 mm) Current circuit 0.31 in (8 mm) Communication 0.28 in (7 mm)
Standards
IEC 62053-21 IEC 62053-23 IEC 61557-12 UL 61010-1 IEC 61036 IEC 61010
Product Certifications
CE IEC 61010 safety) CE EN 61557-12 power monitor) CE IEC 61326-1 EMC) CULus UL 61010 safety) CULus ANSI C12.20 sub-meter) EAC sub-meter) RCM NMI M 6-1 sub-meter) UL
