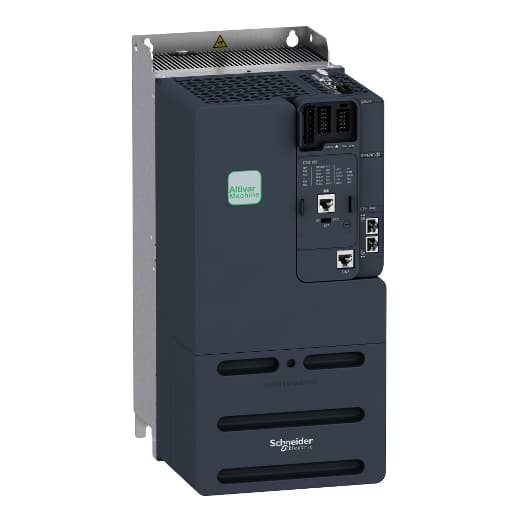

ATV340D11N4E Schneider Electric Industrial Automation Components

Product Details

• Range Of Product
  Altivar Machine ATV340
• Physical Interface
  2-wire RS 485
• 4 Quadrant Operation Possible
  True
• Maximum Input Current Per Phase
  34.7 A
• Maximum Output Voltage
  480 V
• Nominal Output Current
  24.0 A
• Product Specific Application
  Machine
• Discrete Output Type
  Programmable output DQ1, DQ2 30 V DC 100 mA
• Number Of Addresses
  1…247
• Nominal Switching Frequency
  4 kHz
• With Safety Function Safe Speed Monitor (SSM)
  False
• Depth
  9.80 in (249.0 mm)
• [Us] Rated Supply Voltage
  380...480 V - 15...10 %
• Relay Output Number
  2
• With Safety Function Safe Programmable Logic
  False
• Net Weight
  20.94 lb(US) (9.5 kg)
• IP Degree Of Protection
  IP20
• Analogue Output Number
  2
• Data Format
  8 bits, configurable odd, even or no parity
• Variant
  Standard version
Discrete Input Number
5
Transmission Frame
RTU
Base Load Current At Low Overload
32.0 A
With Safety Function Safely Limited Speed (SLS)
True
With Safety Function Safely Limited Position (SLP)
False
Discrete Output Number
2.0
Output Voltage
<= power supply voltage
Connector Type
3 RJ45
Base Load Current At High Overload
24.0 A
With Safety Function Safe Stop 1 (SS1)
True
Supply Frequency
50...60 Hz +/- 5 %
Product Or Component Type
Variable speed drive
Analogue Input Number
2
Maximum Output Frequency
0.599 kHz
With Safety Function Safe Brake Management (SBC/SBT)
True
Height
15.16 in (385.0 mm)
EMC Filter
Class C3 EMC filter integrated
Pollution Degree
2 EN/IEC 61800-5-1
Width
7.09 in (180.0 mm)
Phase
3 phase
Brake Chopper Integrated
True
Prospective Line Isc
22 kA
With Sft Fct Safe Stop 2 (SS2)
False
Number Of Preset Speeds
16 preset speeds
Type Of Polarization
No impedance
Braking To Standstill
By DC injection
Mounting Mode
Cabinet mount
With Safety Function Safe Torque Off (STO)
True
With Safety Function Safe Position (SP)
False
With Safety Function Safe Operating Stop (SOS)
False
With Safety Function Safe Direction (SDI)
False
Option Card
communication module, Profinet communication module, DeviceNet communication module, CANopen communication module, EtherCAT
Maximum Horse Power Rating
20 hp normal duty 15 hp heavy duty
Acceleration And Deceleration Ramps
S, U or customized Linear adjustable separately from 0.01...9999 s
Synchronous Motor Control Profile
Permanent magnet motor Reluctance motor
Apparent Power
22.7 kVA 480 V normal duty) 23 kVA 480 V heavy duty)
Method Of Access
Slave Modbus RTU Slave Modbus TCP
Motor Power Kw
15 kW normal duty 11 kW heavy duty
Switching Frequency
2...16 kHz adjustable 4...16 kHz with derating factor
Minimum Switching Current
Relay output R1B 5 mA 24 V DC Relay output R2C 5 mA 24 V DC
Analogue Output Type
Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits Software-configurable current AQ1 0...20 mA 500 Ohm 10 bits
Continuous Output Current
32 A 4 kHz normal duty 24 A 4 kHz heavy duty
Electrical Connection
Control screw terminal 0.2...2.5 mm² AWG 24...AWG 12 Line side screw terminal 4...25 mm² AWG 10...AWG 3 DC bus screw terminal 4...25 mm² AWG 10...AWG 3 Motor screw terminal 2.5...25 mm² AWG 12...AWG 3
Asynchronous Motor Control Profile
Constant torque standard Optimized torque mode Variable torque standard
Discrete Input Type
PTI programmable as pulse input 0…30 kHz, 24 V DC 30 V) DI1...DI5 safe torque off, 24 V DC 30 V)3.5 kOhm programmable
Communication Port Protocol
Modbus TCP EtherNet/IP Modbus serial
Power Dissipation In W
Natural convection 13 W 380 V 4 kHz heavy duty) Forced convection 241 W 380 V 4 kHz heavy duty) Natural convection 16 W 380 V 4 kHz normal duty) Forced convection 311 W 380 V 4 kHz normal duty)
Transmission Rate
4.8 kbit/s 9.6 kbit/s 19.2 kbit/s 38.4 kbit/s
Relay Output Type
Relay outputs R1A Relay outputs R1C 100000 cycles Relay outputs R2A Relay outputs R2C 100000 cycles
Analogue Input Type
AI1 software-configurable current 0...20 mA 250 Ohm 12 bits AI1 software-configurable temperature probe or water level sensor AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits AI2 software-configurable voltage - 10...10 V DC 3
Maximum Transient Current
35.2 A 60 s normal duty) 36 A 60 s heavy duty) 43.2 A 2 s normal duty) 43 A 2 s heavy duty)
Motor Slip Compensation
Can be suppressed Automatic whatever the load Not available in permanent magnet motor law Adjustable
Maximum Switching Current
Relay output R1C resistive, cos phi = 1 3 A 250 V AC Relay output R1C resistive, cos phi = 1 3 A 30 V DC Relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC Relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC Relay outpu
Line Current
34.7 A 380 V without line choke heavy duty) 27.7 A 480 V without line choke heavy duty) 33.9 A 380 V with external line choke normal duty) 27.2 A 480 V with external line choke normal duty) 35.1 A 380 V with external line choke heavy d
Protection Type
Thermal protection motor Safe torque off motor Motor phase loss motor Thermal protection drive Safe torque off drive Overheating drive Overcurrent drive Output overcurrent between motor phase and earth drive Output
