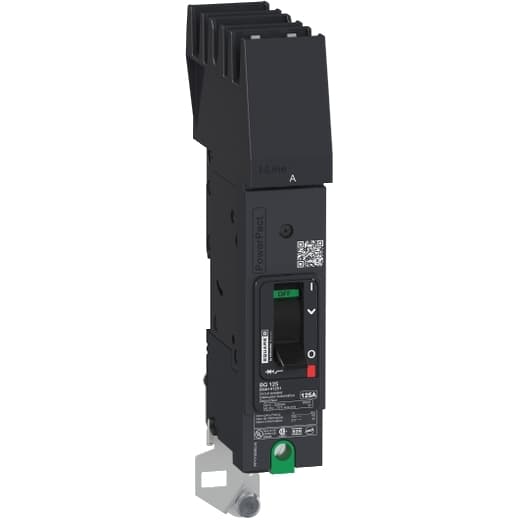

BDA140203 Schneider Electric Industrial Automation Components

Product Details

• Number Of Poles
  1P
• AWG Gauge
  AWG 14...AWG 2/0 aluminium/copper
• Power Wire Stripping Length
  0.79 in (20 mm)
• Product Name
  PowerPact B
• [Ics] Rated Service Breaking Capacity
  25 kA 220...240 V AC 50/60 Hz IEC 60947-2
• Range
  PowerPact
• [Ue] Rated Operational Voltage
  240 V AC 50/60 Hz UL 489
• Connection Pitch
  1.06 in (27 mm)
• Color
  Grey (RAL 7016)
• Line Rated Current
  20 A
• Mechanical Durability
  20000 cycles IEC 947-1 Annex K ed 5.2
• Width
  1.06 in (27 mm)
• Device Short Name
  BD 020
• [Uimp] Rated Impulse Withstand Voltage
  8 kV IEC 60947-2
• Local Signalling
  for presence of auxiliary contacts flag (green)
• 9 Mm Pitches
  3
• Control Type
  Toggle
• [Ui] Rated Insulation Voltage
  800 V IEC 60947-2
• Mounting Height
  1.50 in (38.1 mm)
• Quantity Per Set
  Set of 1
Device Application
Distribution
Suitability For Isolation
Yes conforming to IEC 60947-2
Breaking Capacity Code
D
Utilisation Category
Category A
Net Weight
1.41 lb(US) (0.6375 kg)
Product Or Component Type
Circuit breaker
Trip Unit Technology
Thermal-magnetic
Electrical Durability
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Height
5.39 in (137 mm)
Depth
3.50 in (89 mm)
Continuous Current Rating
80 %
Mounting Mode
I-Line
Phase Connection
B
Electrical Connection
I-Line connection line Lugs load
Tightening Torque
31.86…38.94 lbf.in (3.6…4.4 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 44.25…54.87 lbf.in (5…6.2 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
Breaking Capacity
25 kA 208Y/120 V AC 50/60 Hz UL 489 25 kA 240 V AC 50/60 Hz UL 489 18 kA 480Y/277 V AC 50/60 Hz UL 489 10 kA 125 V DC 50/60 Hz UL 489 14 kA 600/347 V AC 50/60 Hz UL 489
