BDL26015LU Schneider Electric Industrial Automation Components

BDL26015LU on Powermatic Associates
Schneider Electric

Part#:BDL26015LU

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

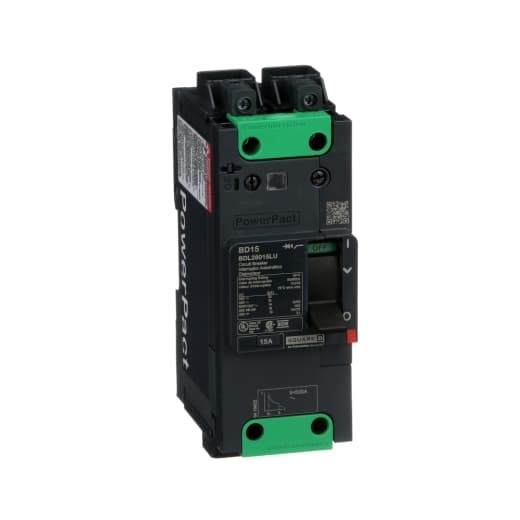

Square D by Schneider Electric BDL26015LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 15A 600Y/347Vac 14kA design. It includes Everlink (Creep compensating) lugs on both line and load sides and a Control Wire terminal (CWT) on the line side only. This MCCB offers a degree of protection of IP40 and has a rated current of 15A with a rated voltage (AC) of 600Vac 600Y/347Vac. It is designed for fixed mounting on a DIN rail or as an individual unit mount on a plate, with a 2-pole (2P) configuration. The net dimensions are 137 mm in height, 80 mm in depth, and 54 mm in width. It is categorized under Utilisation category A and features protection settings for over-current fixed at 15A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. Protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 15 AT. The electrical durability with load is rated for 10,000 operations at 440Vac; In, and the frame current rating is 100 AF. The operating mode is manual toggle, and the short circuit breaking rating varies from 25kA at 240Vac to 10kA at 250Vdc, according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Product Details

  • Breaking Capacity
    25 kA 208Y/120 V AC 50/60 Hz UL 489 18 kA 240 V AC 50/60 Hz UL 489 Icu 25 kA 480/277 V AC 50/60 Hz UL 489 Icu 14 kA 480 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 14 kA 250 V DC UL 489 25 kA Icu 18 kA
  • [Ics] Rated Service Breaking Capacity
    25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Electrical Connection
    Everlink lug line Everlink lug load
  • AWG Gauge
    AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • Depth
    3.15 in (80 mm)
  • Quantity Per Set
    Set of 1
  • Width
    2.13 in (54 mm)
  • Net Weight
    1.70 lb(US) (0.769 kg)
  • Height
    5.39 in (137 mm)
  • 9 Mm Pitches
    6
  • Color
    Grey (RAL 7016)
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex K ed 5.2
  • Utilisation Category
    Category A
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Connection Pitch
    1.06 in (27 mm)
  • Suitability For Isolation
    Yes IEC 60947-2
  • Continuous Current Rating
    80 %
  • Trip Unit Name
    TM-D
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Trip Unit Technology
    Thermal-magnetic
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Breaking Capacity Code
    D
  • Protected Poles Description
    2t
  • Product Name
    PowerPact B
  • Device Short Name
    BD 015
  • Line Rated Current
    15 A
  • Control Type
    Toggle
  • Device Application
    Distribution
  • Number Of Poles
    2P
  • Product Or Component Type
    Circuit breaker
  • Range
    PowerPact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BDL26015LU on Powermatic Associates is $894.00. Order now.
