BDL26080LU Schneider Electric Industrial Automation Components

BDL26080LU on Powermatic Associates
Schneider Electric

Part#:BDL26080LU

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

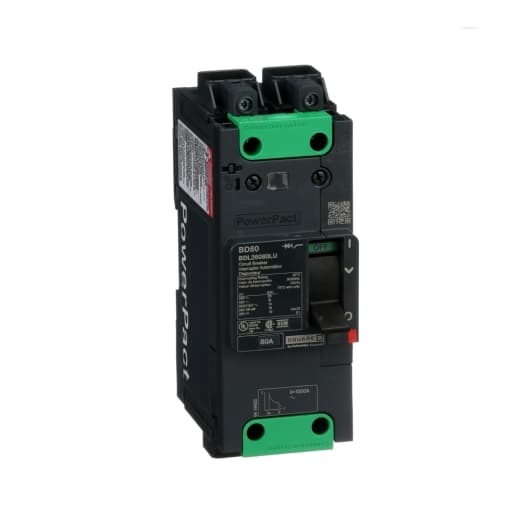

Square D by Schneider Electric BDL26080LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range. It features a PowerPact B-Frame 100 TMD 2P 80A design, operating at 600Y/347Vac with a 14kA breaking capacity and includes Everlink (Creep compensating) lugs on both line and load sides, plus a Control Wire terminal (CWT) on the line side only. This MCCB has an IP40 degree of protection, a rated current of 80A, and a rated voltage of 600Vac 600Y/347Vac. It offers mechanical durability of 20,000 operations and can be mounted either on a DIN rail or as an individual unit on a plate. The device has 2 poles (2P), with dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A and provides over-current protection fixed at 80A, short-circuit hold current protection fixed at 800A, and short-circuit trip current protection fixed at 1200A. The rated voltage for DC applications is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. It includes thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 80 AT. The electrical durability with load is rated at 10,000 operations at 440Vac; In, and the frame current rating is 100 AF. The operating mode is manual toggle, and the short circuit breaking rating varies from 25kA at 240Vac to 10kA at 250Vdc, according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

Product Details

  • Breaking Capacity
    25 kA 208Y/120 V AC 50/60 Hz UL 489 18 kA 240 V AC 50/60 Hz UL 489 Icu 25 kA 480/277 V AC 50/60 Hz UL 489 Icu 14 kA 480 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 14 kA 250 V DC UL 489 25 kA Icu 18 kA
  • [Ics] Rated Service Breaking Capacity
    25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
  • Electrical Connection
    Everlink lug line Everlink lug load
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • AWG Gauge
    AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in)
  • Quantity Per Set
    Set of 1
  • Height
    5.39 in (137 mm)
  • 9 Mm Pitches
    6
  • Net Weight
    1.70 lb(US) (0.769 kg)
  • Depth
    3.15 in (80 mm)
  • Color
    Gray RAL 7016)
  • Width
    2.13 in (54 mm)
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Connection Pitch
    1.06 in (27 mm)
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex K ed 5.2
  • Utilisation Category
    Category A
  • Suitability For Isolation
    Yes conforming to IEC 60947-2
  • Trip Unit Name
    TM-D
  • Continuous Current Rating
    80 %
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Trip Unit Technology
    Thermal-magnetic
  • Breaking Capacity Code
    D
  • Control Type
    Toggle
  • Number Of Poles
    2P
  • Protected Poles Description
    2t
  • Line Rated Current
    80 A
  • Product Or Component Type
    Circuit breaker
  • Device Application
    Distribution
  • Product Name
    PowerPact B
  • Device Short Name
    BD 080
  • Range
    PowerPact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BDL26080LU on Powermatic Associates is $1,067.00. Order now.
