Part#:CAD32G7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

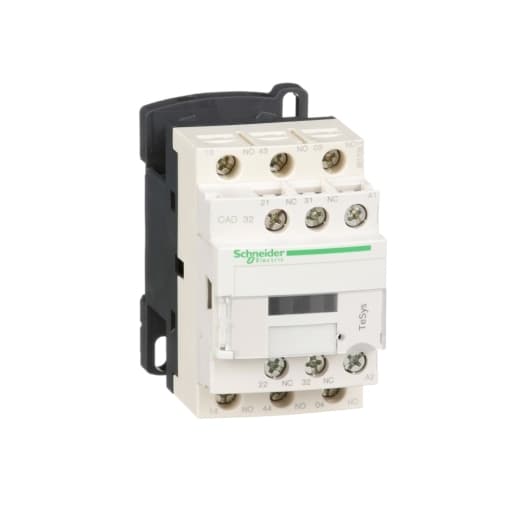

Schneider Electric CAD32G7 is a control relay designed with a mechanical durability of 30,000,000 operations at no load. It features a mounting mode that accommodates both plate and DIN rail installations. The utilisation categories for this part are AC-14, AC-15, and DC-13, indicating its suitability for various control circuit applications. It is equipped with three SPST-NO (Single Pole Single Throw - Normally Open) contacts, ensuring straightforward connectivity for control signals. The type of terminals provided are screw clamp, facilitating secure and reliable wire connections. With an operating rate of 10,800 cycles per hour, this part is designed to meet the demands of high-frequency operation environments.

Product Details

  • Product Name
    TeSys CAD
  • Associated Fuse Rating
    10 A gG IEC 60947-5-1
  • Maximum Operating Rate
    180 cyc/mn
  • Depth
    3.31 in (84 mm)
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Mechanical Durability
    30 Mcycles
  • Height
    3.03 in (77 mm)
  • Product Or Component Type
    Control relay
  • Device Short Name
    CAD
  • [Uc] Control Circuit Voltage
    120 V AC 50/60 Hz
  • Minimum Switching Voltage
    17 V
  • Pole Contact Composition
    3 NO + 2 NC
  • Insulation Resistance
    > 10 MOhm
  • Control Circuit Type
    AC 50/60 Hz
  • Inrush Power In VA
    70 VA 50 Hz 68 °F (20 °C))
  • [Ue] Rated Operational Voltage
    <= 690 V AC 25...400 Hz
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C)
  • Minimum Switching Current
    5 mA
  • Net Weight
    1.28 lb(US) (0.58 kg)
  • Contactor Application
    Control circuit
  • Range
    TeSys
  • Hold-In Power Consumption In VA
    8 VA 50 Hz 68 °F (20 °C))
  • Width
    1.77 in (45 mm)
  • Mounting Support
    Plate Rail
  • [Ui] Rated Insulation Voltage
    600 V UL 600 V CSA 690 V IEC 60947-5-1
  • Tightening Torque
    10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm
  • Non-Overlap Time
    1.5 ms on energisation between NC and NO contact 1.5 ms on de-energisation between NC and NO contact
  • Irms Rated Making Capacity
    140 A AC IEC 60947-5-1 250 A DC IEC 60947-5-1
  • Utilisation Category
    DC-13 AC-15 AC-14
  • [Icw] Rated Short-Time Withstand Current
    100 A - 1 s 120 A - 500 ms 140 A - 100 ms
  • Control Circuit Voltage Limits
    0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
  • Mechanical Robustness
    Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations control
  • Operating Time
    12...22 ms coil energisation and NO closing 4...12 ms coil de-energisation and NO opening 4...19 ms coil energisation and NC opening 6...17 ms coil de-energisation and NC closing
  • Connections - Terminals
    screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end screw clamp termin

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CAD32G7 on Powermatic Associates is $83.28. Order now.
