BDL46100LU Schneider Electric Industrial Automation Components

BDL46100LU on Powermatic Associates
Schneider Electric

Part#:BDL46100LU

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

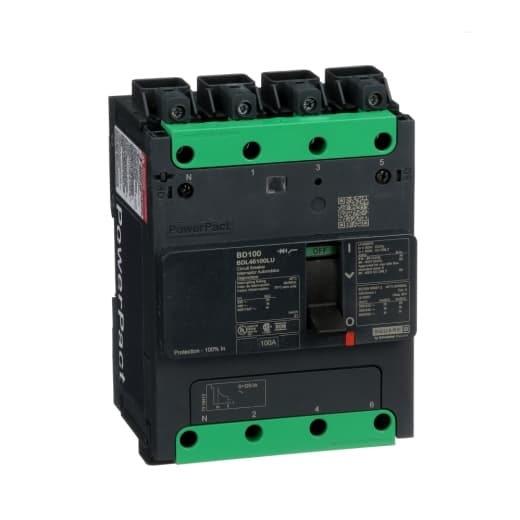

Square D by Schneider Electric BDL46100LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 100 TMD 4P 100A design for 600Y/347Vac with a 14kA short circuit breaking rating and Everlink (Creep compensating) lugs on both line and load sides, plus a Control Wire terminal (CWT) on the line side only. It has a rated impulse voltage (Uimp) of 8 kV, an IP40 degree of protection, and a rated current of 100A. The device operates at a rated voltage of 600Vac 600Y/347Vac, with a mechanical durability of 20,000 operations and can be mounted either on a DIN rail or as an individual unit on a plate. It features 4 poles (4P), with dimensions of 137 mm in height, 80 mm in depth, and 108 mm in width. The MCCB is categorized under Utilisation category A, with protection settings including over-current fixed at 100A, short-circuit hold current fixed at 1000A, and short-circuit trip current fixed at 1500A. It also offers thermal and magnetic protection functions, with a trip current rating of 100 AT and an electrical durability of 10,000 operations at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The trip unit type is Thermal-Magnetic (fixed) without a display.

Product Details

  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Net Weight
    3.18 lb(US) (1.441 kg)
  • Number Of Poles
    4P
  • Trip Unit Technology
    Thermal-magnetic
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Height
    5.39 in (137 mm)
  • Protected Poles Description
    4t
  • Device Short Name
    BD 100
  • Connection Pitch
    1.06 in (27 mm)
  • Depth
    3.15 in (80 mm)
  • Product Or Component Type
    Circuit breaker
  • Utilisation Category
    Category A
  • Product Name
    PowerPact B
  • Continuous Current Rating
    80 %
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Quantity Per Set
    Set of 1
  • Line Rated Current
    100 A
  • Breaking Capacity Code
    D
  • Color
    Grey (RAL 7016)
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex K ed 5.2
  • Control Type
    Toggle
  • Suitability For Isolation
    Yes conforming to IEC 60947-2
  • Width
    4.25 in (108 mm)
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Trip Unit Name
    TM-D
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Device Application
    Distribution
  • Range
    PowerPact
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • 9 Mm Pitches
    12
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Electrical Connection
    Everlink lug line Everlink lug load
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • AWG Gauge
    AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
  • [Ics] Rated Service Breaking Capacity
    25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
  • Breaking Capacity
    25 kA 208Y/120 V AC 50/60 Hz UL 489 18 kA 240 V AC 50/60 Hz UL 489 Icu 25 kA 480/277 V AC 50/60 Hz UL 489 Icu 14 kA 480 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 14 kA 250 V DC UL 489 25 kA Icu 18 kA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BDL46100LU on Powermatic Associates is $1,897.00. Order now.

BDL46100LU Related Documents

Catalog-1631033763383.pdfProduct Datasheet-1631033763386.pdfInstruction Sheet-1631033763370.pdf
