Part#:BGA140203

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

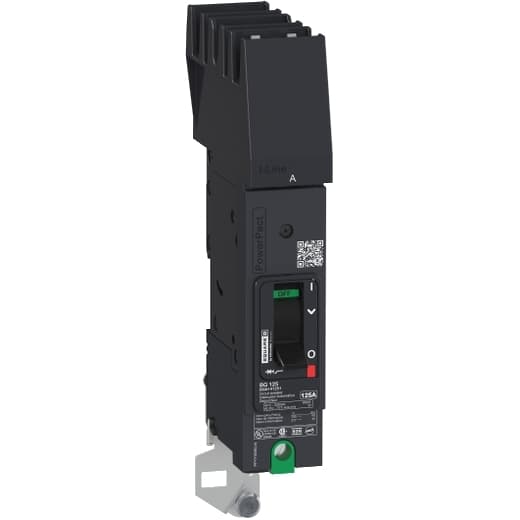

Schneider Electric - BGA140203

Product Details

  • Breaking Capacity
    65 kA 208Y/120 V AC 50/60 Hz UL 489 65 kA 240 V AC 50/60 Hz UL 489 35 kA 480Y/277 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 20 kA 125 V DC UL 489
  • Electrical Connection
    I-Line connection line Lugs load
  • Tightening Torque
    31.86…38.94 lbf.in (3.6…4.4 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 44.25…54.87 lbf.in (5…6.2 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
  • Quantity Per Set
    Set of 1
  • Depth
    3.50 in (89 mm)
  • Net Weight
    1.41 lb(US) (0.6375 kg)
  • Height
    5.39 in (137 mm)
  • Phase Connection
    B
  • Width
    1.06 in (27 mm)
  • Color
    Grey (RAL 7016)
  • 9 Mm Pitches
    3
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • AWG Gauge
    AWG 14...AWG 2/0 aluminium/copper
  • Mounting Mode
    I-Line
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Mounting Height
    1.50 in (38.1 mm)
  • Connection Pitch
    1.06 in (27 mm)
  • Mechanical Durability
    20000 cycles IEC 947-1 Annex K ed 5.2
  • Utilisation Category
    Category A
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Suitability For Isolation
    Yes IEC 60947-2
  • Trip Unit Technology
    Thermal-magnetic
  • Continuous Current Rating
    80 %
  • [Ics] Rated Service Breaking Capacity
    65 kA 220...240 V AC 50/60 Hz IEC 60947-2
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz UL 489
  • Device Short Name
    BG 020
  • Control Type
    Toggle
  • Device Application
    Distribution
  • Breaking Capacity Code
    G
  • Number Of Poles
    1P
  • Product Name
    PowerPact B
  • Line Rated Current
    20 A
  • Product Or Component Type
    Circuit breaker
  • Range
    PowerPact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
