Powermatic Associates Logo

BGF36125 Schneider Electric Industrial Automation Components

BGF36125 on Powermatic Associates
Schneider Electric

Part#:BGF36125

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Square D by Schneider Electric BGF36125 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGF sub-range, featuring a PowerPact B-Frame 125 TMD 3P-3t design. It has a rated current of 125A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. The connection type is a terminal nut kit for fixed busbar connection on both line and load sides, and it offers a degree of protection of IP40. This MCCB is designed for fixed mounting on DIN rail or as an individual unit mount on a plate, with three poles (3P) and dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. It falls under utilisation category A and has mechanical durability of 15,000 operations at no load. The protection settings include over-current fixed at 125A, short-circuit hold current fixed at 1000A, and short-circuit trip current fixed at 1500A. It also features a rated voltage (DC) of 250Vdc, rated insulation voltage (Ui) of 800 V, and rated operating voltage (Ue) of 525 V. The protection functions are thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 125 AT. Its electrical durability with load is 10,000 operations at 440Vac; In, and it has a frame current rating of 125 AF. The operating mode is manual toggle, and it has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 18kA at 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Product Details

  • Breaking Capacity
    65 kA 208Y/120 V AC 50/60 Hz UL 489 65 kA 240 V AC 50/60 Hz UL 489 35 kA 480/277 V AC 50/60 Hz UL 489 35 kA 480 V AC 50/60 Hz UL 489 20 kA 250 V DC UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489
  • [Ics] Rated Service Breaking Capacity
    65 kA 220...240 V AC 50/60 Hz IEC 60947-2 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 35 kA 440 V AC 50/60 Hz IEC 60947-2
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • AWG Gauge
    AWG 14...AWG 8 aluminium/copper AWG 6...AWG 3/0 aluminium/copper
  • Quantity Per Set
    Set of 1
  • Net Weight
    2.04 lb(US) (0.924 kg)
  • Depth
    3.15 in (80 mm)
  • 9 Mm Pitches
    9
  • Height
    5.39 in (137 mm)
  • Width
    3.19 in (81 mm)
  • Color
    Gray RAL 7016)
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Electrical Connection
    Terminal nut ON and OFF end
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Connection Pitch
    1.06 in (27 mm)
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Utilisation Category
    Category A
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex K ed 5.2
  • Suitability For Isolation
    Yes IEC 60947-2
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Trip Unit Technology
    Thermal-magnetic
  • Trip Unit Name
    TM-D
  • Breaking Capacity Code
    G
  • Continuous Current Rating
    80 %
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Control Type
    Toggle
  • Device Short Name
    BG 125
  • Line Rated Current
    125 A
  • Device Application
    Distribution
  • Product Or Component Type
    Circuit breaker
  • Number Of Poles
    3P
  • Protected Poles Description
    3t
  • Product Name
    PowerPact B
  • Range
    PowerPact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BGF36125 on Powermatic Associates is $3,444.00. Order now.

BGF36125 Related Documents

Product Datasheet-1631034120389.pdfInstruction Sheet-1631034120370.pdfCatalog-1631034120386.pdf

Similar products from: Schneider Electric Industrial Automation Components

LC1D95M7 on Powermatic Associates

LC1D95M7

Schneider Electric

Schneider Electric LC1D95M7 is a magnetic contactor from the Deca sub-range, featuring screw connections and three poles (3P; 3NO). It has a rated current of 125A (AC-1) and 95A (440Vac; AC-3), with a mounting mode designed for DIN rail installation. The net width of the contactor is 85 mm, and it offers a degree of protection rated at IP20. The control voltage (AC) ranges from 176-242Vac (220Vac nom.; 50Hz; 0.8...1.1 x Uc) to 187-242Vac (220Vac nom.; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 1000 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 8 kV. This contactor is capable of handling rated active power ranging from 25kW (220-230Vac; AC-3) to 55kW (500Vac; AC-3), with specific ratings for various voltages up to 1000Vac. It also supports rated power (HP) for motors from 7.5HP (115Vac; single-phase) to 60HP (575-600Vac; 3-phase), under UL/CSA standards. The mechanical durability of the LC1D95M7 is rated at 4,000,000 operations, and its electrical durability (with load) is rated at 1,200,000 operations. The rated voltage (AC) for phase-to-phase connections is 1000 V.

17 in stock
MGN61508 on Powermatic Associates

MGN61508

Schneider Electric

Schneider Electric MGN61508 is a Miniature Circuit Breaker (MCB) designed for DC applications. It falls under the C60H-DC sub-range and features a rated current of 10A with a rated voltage of 250V DC. This MCB is equipped with 1 pole that is protected and utilizes a C tripping curve.

32 in stock
NSYTRACRE24 on Powermatic Associates

NSYTRACRE24

Schneider Electric

Schneider Electric - NSYTRACRE24

30 in stock
M9F43303 on Powermatic Associates

M9F43303

Schneider Electric

Schneider Electric M9F43303 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed with a 3-pole configuration. It has a rated current of 3A and features a rated insulation voltage (Ui) of 500V. This MCB operates with a rated voltage of 60Vdc and has a rated impulse voltage (Uimp) of 6kV. It offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc. The rated voltage for AC applications is 240V phase-to-neutral and 415V phase-to-phase. All three poles are protected, and it is equipped with a D tripping curve.

5 in stock
VW3A9921 on Powermatic Associates

VW3A9921

Schneider Electric

Schneider Electric VW3A9921 is an adapter designed for direct circuit breaker mounting. This mechanical adapter kit facilitates the integration of components by providing a compatible interface for secure and straightforward installation.

12 in stock
M9F53220 on Powermatic Associates

M9F53220

Schneider Electric

Schneider Electric M9F53220 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed with a 2 Pole configuration and a rated current of 20A. It features a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. The M9F53220 offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 125Vdc. It supports a rated voltage (AC) for phase-to-phase connections up to 440 V and has 2 protected poles. The tripping curve for this MCB is classified as D.

1 in stock

Manufacturer warranty

BGF36125 Schneider Electric

$3,444.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$3,444.00

$3,444.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare BGF36125 with other Industrial Automation Components products

Breaking Capacity

[Ics] Rated Service Break...

Number Of Slots

Tightening Torque

Mounting Mode

AWG Gauge

Quantity Per Set

Net Weight

Depth

9 Mm Pitches

Selected product

BGF36125
Backordered
BGF36125
Schneider Electric

Square D by Schneider Electric BGF36125 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Breaking Capacity65 kA 208Y/120 V AC 50/60 Hz...

[Ics] Rated Service Breaking Capacity65 kA 220...240 V AC 50/60 H...

Number Of Slots1 auxiliary switch OF plug-i...

Tightening Torque44.25 lbf.in (5 N.m) 0.00…0....

Mounting ModeClip-on 35 mm symmetrical DI...

AWG GaugeAWG 14...AWG 8 aluminium/cop...

Quantity Per SetSet of 1

Net Weight2.04 lb(US) (0.924 kg)

Depth3.15 in (80 mm)

9 Mm Pitches9

BDF36015
4 in stock
BDF36015
Schneider Electric

Square D by Schneider Electric BDF36015 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Breaking Capacity-

[Ics] Rated Service Breaking Capacity25 kA 220...240 V AC 50/60 H...

Number Of Slots-

Tightening Torque-

Mounting Mode-

AWG Gauge-

Quantity Per Set-

Net Weight-

Depth-

9 Mm Pitches-

BDF36100
7 in stock
BDF36100
Schneider Electric

Square D by Schneider Electric BDF36100 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Breaking Capacity-

[Ics] Rated Service Breaking Capacity25 kA 220...240 V AC 50/60 H...

Number Of Slots-

Tightening Torque-

Mounting Mode-

AWG Gauge-

Quantity Per Set-

Net Weight-

Depth-

9 Mm Pitches-

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

MFI1FRL17N4 on Powermatic Associates

MFI1FRL17N4

Novanta IMS

Novanta IMS MFI1FRL17N4 is a stepper motor controller within the Stepper motor controllers sub-range, designed under the MicroDrive series. It operates with a supply voltage range of 12Vdc to 48Vdc, nominally at 24Vdc, and supports a rated current of 3A. This controller is equipped for DC stepper motor drive functions and features an ambient air temperature for operation between 0 and +65 °C. For connectivity, it includes 30cm / 12" bare end flying leads, a 10-pin wire crimp connector, and a 4-pin wire crimp connector. Communication with the controller is facilitated through RS-422 and RS-485 protocols. It also offers 4 x digital outputs (sinking; NPN) and 4 x digital inputs (sourcing; NPN). The device is designed to be stored in conditions ranging from -25 to +70 °C ambient air temperature.

0 in stock
MDI4MRQ34C1-EQ on Powermatic Associates

MDI4MRQ34C1-EQ

Novanta IMS

Novanta IMS MDI4MRQ34C1-EQ is a stepper motor designed with an integrated driver and a 2-phase AC stepper motor configuration. It features an external single-end 512-line optical encoder and is built with a triple (3) motor stack, Plus 2 version for expanded features. This motor offers connectivity through a 19-pin M23 male connector and a 5-pin M12 female connector, supporting RS-422 and RS-485 communication protocols. It operates on a supply voltage of 120Vac and is mounted via an 85x85mm flange. The MDI4MRQ34C1-EQ is designed to function within an ambient air temperature range of 0 to +85°C and is protected to a degree of IP65. It has a moment of inertia of 3.4kg.cm^2 and provides a stall torque of 529N.cm, with a resolution characterized by a 1.8° step angle.

0 in stock

Relevant products

BGF36020 on Powermatic Associates

BGF36020

Verified stock: 0

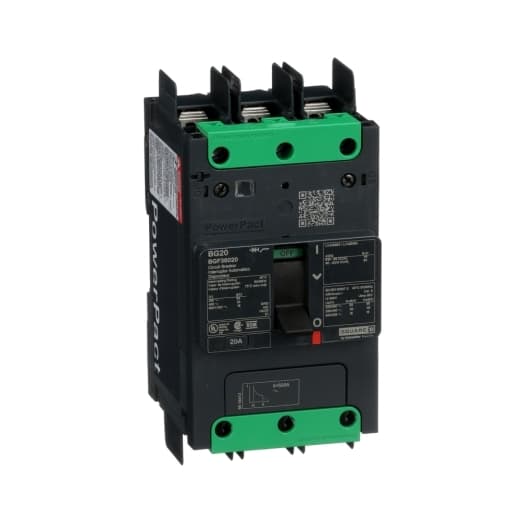

Square D by Schneider Electric BGF36020 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design. It has a rated current of 20A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. The connection type is a terminal nut kit for fixed busbar connection on both line and load sides, offering a degree of protection of IP40. This MCCB has a mechanical durability of 15,000 operations and can be mounted either on a DIN rail or as an individual unit on a plate. It comes with three poles (3P) and has dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. The utilisation category is A, and it features over-current protection fixed at 20A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V. It provides thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 20 AT. The electrical durability with load is 10,000 operations at 440Vac; In, and the frame current rating is 100 AF. The operating mode is manual toggle, and it has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, and 18kA at 600Y/347Vac under UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

Schneider Electric

BGF36015 on Powermatic Associates

BGF36015

Verified stock: 0

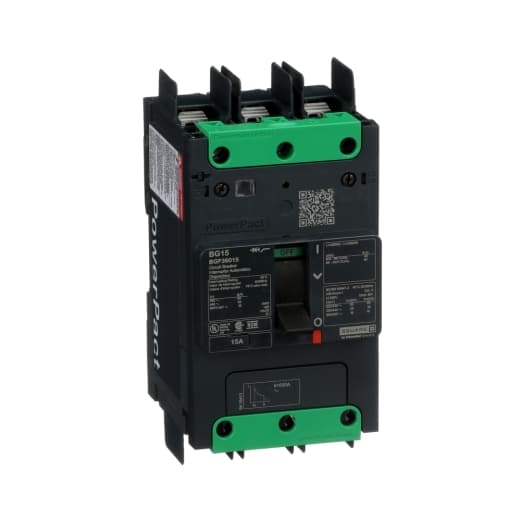

Square D by Schneider Electric BGF36015 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design. It has a rated current of 15A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. This MCCB offers a connection via a terminal nut kit for fixed busbar connections on both line and load sides and provides a degree of protection of IP40. It is designed for mounting either fixed on a DIN rail or as an individual unit mounted on a plate, with dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. The BGF36015 has three poles (3P) and falls under utilisation category A. It features over-current protection fixed at 15A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V, and it includes thermal protection for overload and magnetic protection for short-circuits. The trip current rating is 15 AT, and it has a frame current rating of 100 AF. The operating mode is manual toggle, and it has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, and 18kA at 600Y/347Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

Schneider Electric

BGF36110 on Powermatic Associates

BGF36110

Verified stock: 0

Square D by Schneider Electric BGF36110 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGF sub-range, featuring a PowerPact B-Frame 125 TMD 3P-3t design with a rated current of 110A and a rated voltage of 600Vac 600Y/347Vac. It has a rated impulse voltage (Uimp) of 8 kV and utilizes a terminal nut kit for fixed busbar connection on both line and load sides, offering a degree of protection of IP40. The MCCB has a mechanical durability of 15,000 operations at no load and can be mounted either on a DIN rail or as an individual unit on a plate. It is a 3-pole (3P) device with dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. The utilisation category is A, and it features over-current protection fixed at 110A, short-circuit hold current protection fixed at 1000A, and short-circuit trip current protection fixed at 1500A. The rated voltage for DC applications is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. It provides thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 110 AT and an electrical durability of 10,000 operations at 440Vac; In. The frame current rating is 125 AF, and it operates via a toggle (manual) with a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 18kA at 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

Schneider Electric

BGF36045 on Powermatic Associates

BGF36045

Verified stock: 0

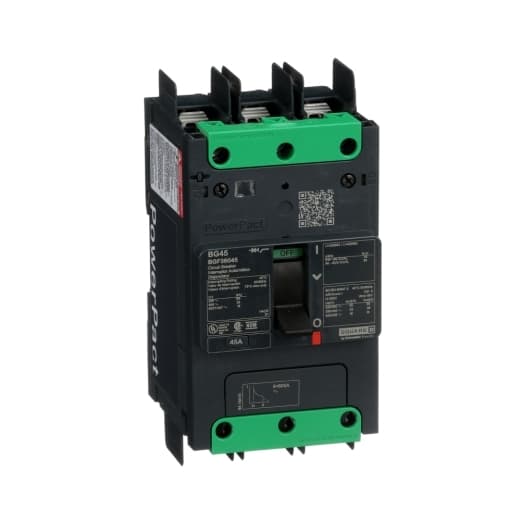

Square D by Schneider Electric BGF36045 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design with a rated current of 45A and a rated voltage of 600Vac 600Y/347Vac. It has a rated impulse voltage (Uimp) of 8 kV and offers a connection via a Term. nut kit for fixed busbar connection on both line and load sides. The device is IP40 protected, has a mechanical durability of 15,000 operations, and can be mounted on a DIN rail or as an individual unit on a plate. It includes three poles (3P) and has dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. The BGF36045 operates in Utilisation category A and features over-current protection fixed at 45A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. It supports a rated insulation voltage (Ui) of 800 V, a rated operating voltage (Ue) of 525 V, and offers thermal and magnetic protection functions. The trip current rating is 45 AT, with an electrical durability of 10,000 operations at 440Vac; In. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies with voltage, including 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 18kA at 600Y/347Vac, and 20kA at 250Vdc, all under UL489. The trip unit type is thermal-magnetic (fixed) without a display.

Schneider Electric

BGF36025 on Powermatic Associates

BGF36025

Verified stock: 0

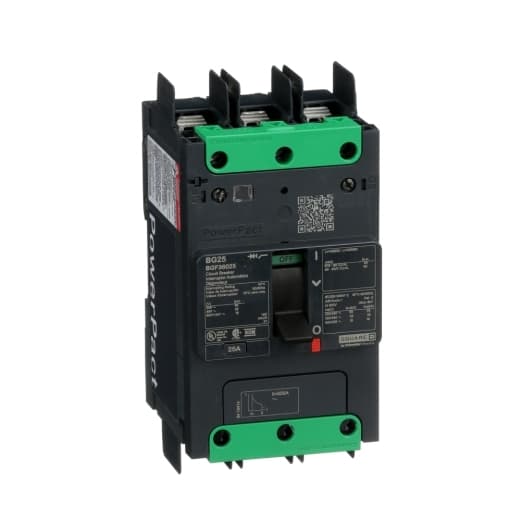

Square D by Schneider Electric BGF36025 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design with a rated current of 25A and a rated voltage of 600Vac 600Y/347Vac. It has a rated impulse voltage (Uimp) of 8 kV and offers a connection via Term. nut kit for fixed busbar connection on both line and load sides. The degree of protection is IP40, and it is designed for mounting either fixed on DIN rail or as an individual unit mount on plate. This 3-pole (3P) circuit breaker has a net height of 137 mm, a net depth of 80 mm, and a net width of 81 mm. It falls under utilisation category A and features protection settings including over-current fixed at 25A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V, and it provides thermal and magnetic protection functions. The trip current rating is 25 AT, and it has a frame current rating of 100 AF. The operating mode is manual toggle, and it has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Y/347Vac according to UL489, and 20kA at 250Vdc. The trip unit type is thermal-magnetic (fixed) with no display.
