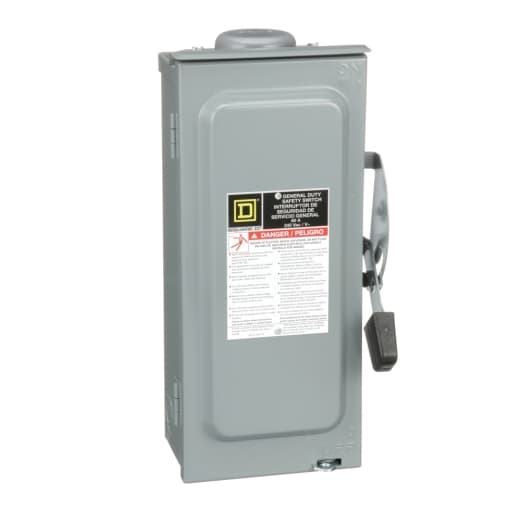

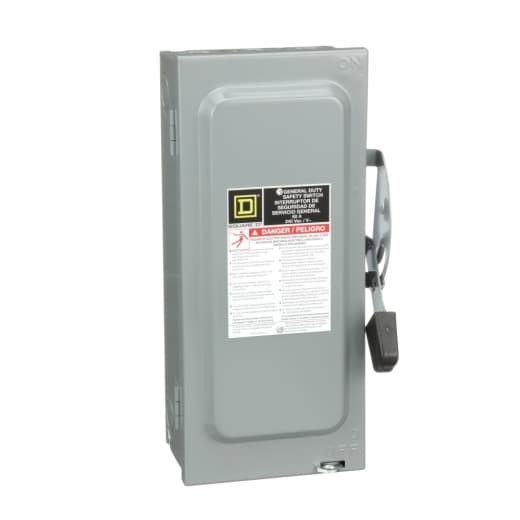

D222NRB Schneider Electric Industrial Automation Components

Product Details

• Wiring Configuration
  3-wire
• Device Application
  Residential
• Electrical Connection
  Lugs
• Disconnect Type
  Fusible disconnect switch
• Fuse Type
  H, K or R
• Short Circuit Current Rating
  100 kA maximum depending on fuse H, K or R
• Factory Installed Neutral
  Neutral (factory installed)
• Duty Rating
  General duty
• Mounting Type
  Surface
• Depth
  4.87 in (123.70 mm)
• Current Rating
  60 A
• Enclosure Rating NEMA
  NEMA 3R
• Width
  7.45 in (189.23 mm)
• Product
  Single Throw Safety Switch
• Voltage Rating
  240 V AC
• Phase
  3 phase
• Number Of Poles
  2
• Height
  14.88 in (377.95 mm)
• Net Weight
  8.82 lb(US) (4 kg)
• Wire Size
  AWG 12...AWG 3 aluminium AWG 14...AWG 3 copper
Tightening Torque
35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.08…5.26 mm²) (AWG 14...AWG 10) 35 lbf.in (3.95 N.m) (AWG 14...AWG 10) 45 lbf.in (5.08 N.m) 0.01 in² (8.37 mm²) (AWG 8) 45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) (AWG 6...AWG 4) 50 lbf.in
Maximum Horse Power Rating
1.5 hp 120 V at AC 60 Hz for 1 phase conforming to NEC 240.6 3 hp 120 V at AC 60 Hz for 3 phase conforming to NEC 430.52 3 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 240.6 7.5 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 240.6
