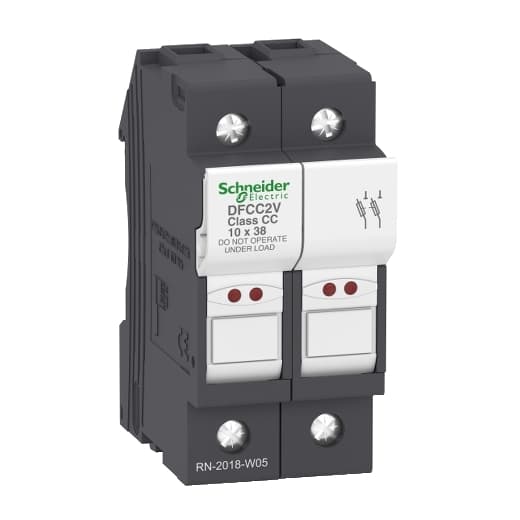

DFCC2V Schneider Electric Industrial Automation Components

Product Details

• Fuse Type
  , CC
• [Uimp] Rated Impulse Withstand Voltage
  6 kV
• Net Weight
  0.19 lb(US) (0.085 kg)
• [Ui] Rated Insulation Voltage
  600 V AC
• Utilisation Category
  AC-20B IEC 60947-3
• Mounting Support
  35 mm symmetrical DIN rail
• Product Name
  TeSys DF
• [Ie] Rated Operational Current
  30 A
• Depth
  2.40 in (61 mm)
• Width
  1.38 in (35 mm)
• Local Signalling
  Blown fuse indication
• Power Dissipation In W
  3 W maximum power dissipation by fuse
• Height
  3.13 in (79.5 mm)
• Range
  TeSys
• Device Short Name
  DFCC
• Short-Circuit Withstand
  200 kA 600 V UL 512
• Poles Description
  2P
• Control Type
  Toggle padlockable
• Mounting Position
  Vertical +/- 23°)
• [Ue] Rated Operational Voltage
  600 V AC
Product Or Component Type
Fuse carrier
Quantity Per Set
Set of 6
Product Certifications
UL Recognized CSA
Tightening Torque
17.70 lbf.in (2 N.m) PZ2 17.70 lbf.in (2 N.m) flat Ø 5.5 mm
Standards
UL 4248-1 UL 4248-4 CSA C22.2 No 4248-1 CSA C22.2 No 4248-4
Connections - Terminals
screw clamp terminals 1 0.00…0.02 in² (1…16 mm²)rigid screw clamp terminals 2 0.00…0.01 in² (1…6 mm²)rigid screw clamp terminals 1 0.00…0.02 in² (1…16 mm²)flexible with or without screw clamp terminals 2 0.00…0.01 in² (1…6 mm²)flexible w
