EDB14040 Schneider Electric Industrial Automation Components
Part#:EDB14040
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

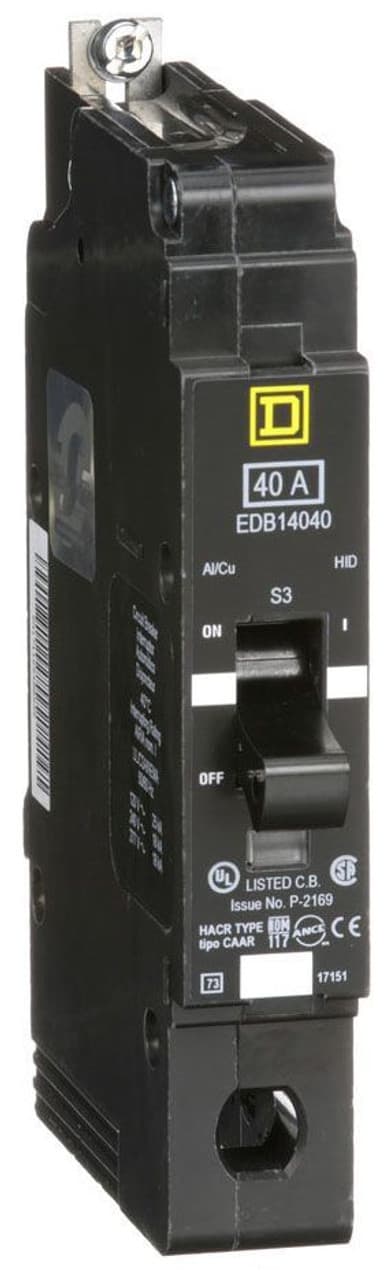

Square D by Schneider Electric EDB14040 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and operates at a rated voltage of 277 V AC. This MCB serves as both an Equipment Protection Device (EPD) and a Circuit Breaker (CB) with a breaking capacity code D. It offers short-circuit and overload protection, utilizing an aluminium lugs connection. The EDB14040 is rated for a current of 40A and is a single-pole device. It accommodates a wire cross-section ranging from 12 to 2/0 AWG. The short circuit breaking rating is specified at 25kA for 120Vac, 18kA for 240Vac, and 18kA for 277Vac. It features a thermal-magnetic trip unit with a protection setting (trip unit rating) of 1800A.
Product Details
- Number Of Spaces Required 1
- Depth 4.05 in (102.87 mm)
- Mounting Mode Bolt-on
- Height 5.66 in (143.76 mm)
- Line Rated Current 40 A
- Local Signalling Trip indicator
- Product Or Component Type Miniature circuit-breaker
- Electrical Connection Lugs aluminium
- Trip Unit Technology Thermal-magnetic
- Range Of Product 125 A Frame EDB-EGB-EJB
- Holding Current 630 A
- Device Short Name EDB
- Number Of Poles 1
- Net Weight 2 lb(US) (0.91 kg)
- Trip Unit Rating 1800 A
- Number Of Spaces 1
- Width 0.98 in (24.89 mm)
- Product Destination NF panelboard
- Maximum Operating Voltage 277 V AC
- Module Type E-Frame
- Breaking Capacity Code D
- TS PIK: 115178510
- Shipping Weight: 1.25 lbs.
- UPC: 78590187895
- Shipping Length: 10.00 In.
- Shipping Height: 2.00 In.
- Shipping Width: 6.00 In.
- Circuit Breaker Application HACR rated HID rated
- Protection Type Short-circuit Overload
- Tightening Torque 34.52 lbf.in (3.9 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 49.56 lbf.in (5.6 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
- AWG Gauge AWG 12...AWG 2/0 aluminium AWG 14...AWG 2/0 copper
- Breaking Capacity 18 kA 277 V AC 18 kA 240 V AC 25 kA 120 V AC 18 kA 120/240 V AC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EDB14040 on Powermatic Associates is $150.00. Order now.
