EDB14040SA Schneider Electric Industrial Automation Components

EDB14040SA on Powermatic Associates
Schneider Electric

Part#:EDB14040SA

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

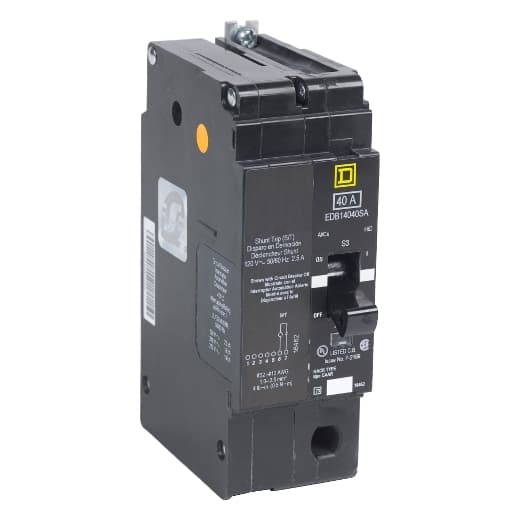

Square D by Schneider Electric EDB14040SA is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and operates at a rated voltage of 277 V AC. This MCB is equipped with short-circuit and overload protection functions, serving as an Equipment Protection Device (EPD) and Circuit Breaker (CB) with a shunt trip coil, having a breaking capacity code D. It offers an aluminium lugs connection and supports a rated current of 40A across 1 Pole(s). The cross-section compatibility ranges from 12-2/0AWG. Its short circuit breaking rating is specified at 25kA for 120Vac, 18kA for 240Vac, and 18kA for 277Vac. The EDB14040SA utilizes a thermal-magnetic trip unit with protection settings at a trip unit rating of 1800A.

Product Details

  • Trip Unit Technology
    Thermal-magnetic
  • Line Rated Current
    40 A
  • Holding Current
    630 A
  • Electrical Connection
    Lugs aluminium
  • Product Or Component Type
    Miniature circuit-breaker
  • Product Destination
    NF panelboard
  • Device Composition
    Shunt trip
  • Net Weight
    2 lb(US) (0.91 kg)
  • Number Of Spaces
    2
  • Trip Unit Rating
    1800 A
  • Local Signalling
    Trip indicator
  • Breaking Capacity Code
    D
  • Depth
    4.05 in (102.87 mm)
  • Range Of Product
    125 A Frame EDB-EGB-EJB
  • Device Short Name
    EDB
  • Number Of Spaces Required
    2
  • Width
    1.96 in (49.78 mm)
  • Mounting Mode
    Bolt-on
  • Module Type
    E-Frame
  • Maximum Operating Voltage
    277 V AC
  • Number Of Poles
    1
  • Height
    5.66 in (143.76 mm)
  • AWG Gauge
    AWG 12...AWG 2/0 aluminium AWG 14...AWG 2/0 copper
  • Protection Type
    Short-circuit Overload
  • Tightening Torque
    34.52 lbf.in (3.9 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 49.56 lbf.in (5.6 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
  • Circuit Breaker Application
    HID rated HACR rated
  • Breaking Capacity
    18 kA 277 V AC 18 kA 240 V AC 25 kA 120 V AC 18 kA 120/240 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EDB14040SA on Powermatic Associates is $905.00. Order now.
