EDB24030 Schneider Electric Industrial Automation Components
Part#:EDB24030
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

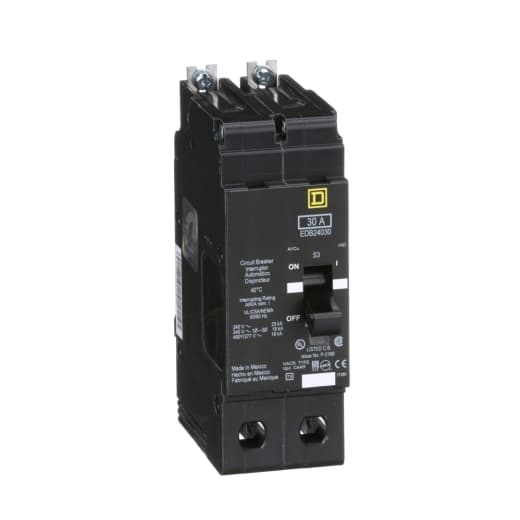

Square D by Schneider Electric EDB24030 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and operates at a rated voltage of 480 V AC. This MCB is equipped with short-circuit and overload protection functions, serving as both an Equipment Protection Device (EPD) and a Circuit Breaker (CB) with a breaking capacity code D. It offers an aluminium lugs connection and supports a rated current of 30A across 2 poles. The EDB24030 accommodates a cross-section of 14-6AWG for one copper cable and has a short circuit breaking rating of 25kA at 120Vac and 240Vac, and 18kA at 480Y/277Vac. Its thermal-magnetic trip unit has a protection setting with a trip unit rating of 875A.
Product Details
- Device Short Name EDB
- Holding Current 270 A
- Width 1.96 in (49.78 mm)
- Range Of Product 125 A Frame EDB-EGB-EJB
- Mounting Mode Bolt-on
- Net Weight 3 lb(US) (1.36 kg)
- Module Type E-Frame
- Trip Unit Technology Thermal-magnetic
- Tightening Torque 30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6)
- Number Of Spaces 2
- Product Destination NF panelboard
- Trip Unit Rating 875 A
- Local Signalling Trip indicator
- Product Or Component Type Miniature circuit-breaker
- Electrical Connection Lugs aluminium
- Breaking Capacity Code D
- Maximum Operating Voltage 480Y/277 V AC
- Number Of Poles 2
- Depth 4.05 in (102.87 mm)
- Line Rated Current 30 A
- Number Of Spaces Required 2
- Height 5.66 in (143.76 mm)
- AWG Gauge AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper
- Circuit Breaker Application HID rated HACR rated
- Protection Type Short-circuit Overload
- Breaking Capacity 18 kA 277 V AC 25 kA 240 V AC 18 kA 480Y/277 V AC 25 kA 120 V AC 25 kA 120/240 V AC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EDB24030 on Powermatic Associates is $536.00. Order now.
