EDB24050SA Schneider Electric Industrial Automation Components

EDB24050SA on Powermatic Associates
Schneider Electric

Part#:EDB24050SA

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

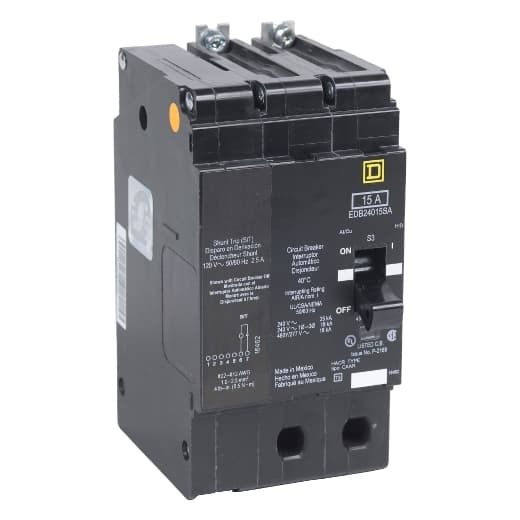

Square D by Schneider Electric EDB24050SA is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and operates at a rated voltage of 480 V AC. This MCB serves as an Equipment Protection Device (EPD) and Circuit Breaker (CB) with a shunt trip coil, offering short-circuit and overload protection functions. It is equipped with an aluminium lugs connection and supports a rated current of 50A across 2 poles. The cross-section compatibility ranges from 12 to 2/0 AWG. Its short circuit breaking rating is specified at 25kA for 120Vac and 240Vac, and 18kA for 480Y/277Vac. The EDB24050SA utilizes a thermal-magnetic trip unit with protection settings at a trip unit rating of 1800A.

Product Details

  • Maximum Operating Voltage
    480Y/277 V AC
  • Electrical Connection
    Lugs aluminium
  • Device Composition
    Shunt trip
  • Number Of Poles
    2
  • Net Weight
    3 lb(US) (1.36 kg)
  • Product Or Component Type
    Miniature circuit-breaker
  • Mounting Mode
    Bolt-on
  • Trip Unit Technology
    Thermal-magnetic
  • Module Type
    E-Frame
  • Product Destination
    NF panelboard
  • Width
    1.96 in (49.78 mm)
  • Device Short Name
    EDB
  • Number Of Spaces
    2
  • Height
    5.66 in (143.76 mm)
  • Range Of Product
    125 A Frame EDB-EGB-EJB
  • Breaking Capacity Code
    D
  • Line Rated Current
    50 A
  • Holding Current
    630 A
  • Number Of Spaces Required
    2
  • Trip Unit Rating
    1800 A
  • Local Signalling
    Trip indicator
  • Depth
    4.05 in (102.87 mm)
  • Circuit Breaker Application
    HACR rated HID rated
  • AWG Gauge
    AWG 12...AWG 2/0 aluminium AWG 14...AWG 2/0 copper
  • Tightening Torque
    34.52 lbf.in (3.9 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 49.56 lbf.in (5.6 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
  • Protection Type
    Overload Short-circuit
  • Breaking Capacity
    18 kA 277 V AC 25 kA 240 V AC 18 kA 480Y/277 V AC 25 kA 120 V AC 25 kA 120/240 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EDB24050SA on Powermatic Associates is $1,291.00. Order now.
