Part#:EGB14040

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

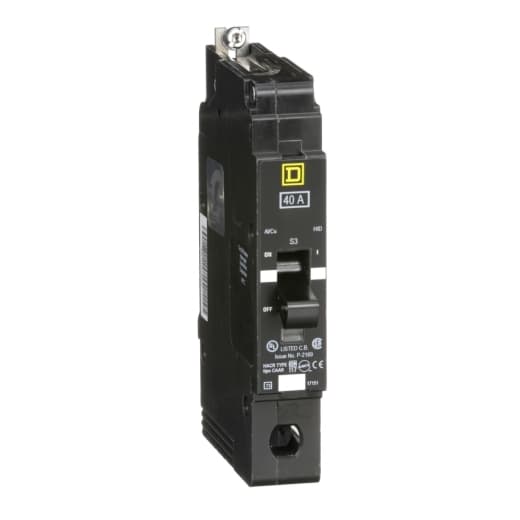

Square D by Schneider Electric EGB14040 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and is rated for 277V AC. This MCB offers short-circuit and overload protection, functioning as both an Equipment Protection Device (EPD) and a Circuit Breaker (CB) with a breaking capacity code G. It utilizes an aluminium lugs connection and supports a rated current of 40A across 1 Pole(s). The cross-section compatibility ranges from 12-2/0AWG. It has a short circuit breaking rating of 65kA at 120Vac, 35kA at 240Vac, and 35kA at 277Vac. The trip unit is thermal-magnetic with protection settings at a trip unit rating of 1800A.

Product Details

  • Range Of Product
    125 A Frame EDB-EGB-EJB
  • Product Or Component Type
    Miniature circuit-breaker
  • Local Signalling
    Trip indicator
  • Holding Current
    630 A
  • Width
    0.98 in (24.89 mm)
  • Line Rated Current
    40 A
  • Maximum Operating Voltage
    277 V AC
  • Number Of Poles
    1
  • Height
    5.66 in (143.76 mm)
  • Trip Unit Rating
    1800 A
  • Number Of Spaces
    1
  • Net Weight
    2 lb(US) (0.91 kg)
  • Product Destination
    NF panelboard
  • Module Type
    E-Frame
  • Number Of Spaces Required
    1
  • Breaking Capacity Code
    G
  • Mounting Mode
    Bolt-on
  • Trip Unit Technology
    Thermal-magnetic
  • Device Short Name
    EGB
  • Electrical Connection
    Lugs aluminium
  • Depth
    4.05 in (102.87 mm)
  • Circuit Breaker Application
    HID rated HACR rated
  • AWG Gauge
    AWG 12...AWG 2/0 aluminium AWG 14...AWG 2/0 copper
  • Tightening Torque
    34.52 lbf.in (3.9 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 49.56 lbf.in (5.6 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
  • Protection Type
    Overload Short-circuit
  • Breaking Capacity
    35 kA 277 V AC 35 kA 240 V AC 65 kA 120 V AC 35 kA 120/240 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EGB14040 on Powermatic Associates is $255.00. Order now.
