EGB34030CA Schneider Electric Industrial Automation Components

EGB34030CA on Powermatic Associates
Schneider Electric

Part#:EGB34030CA

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - EGB34030CA

Product Details

  • Breaking Capacity
    35 kA 277 V AC 65 kA 240 V AC 35 kA 480Y/277 V AC 65 kA 120 V AC 65 kA 120/240 V AC
  • Circuit Breaker Application
    HACR rated HID rated
  • Protection Type
    Short-circuit Overload
  • AWG Gauge
    AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper
  • Net Weight
    4 lb(US) (1.81 kg)
  • Breaking Capacity Code
    G
  • Height
    5.66 in (143.76 mm)
  • Depth
    4.05 in (102.87 mm)
  • Tightening Torque
    30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6)
  • Width
    2.94 in (74.68 mm)
  • Trip Unit Technology
    Thermal-magnetic
  • Product Destination
    NF panelboard
  • Number Of Spaces Required
    3
  • Holding Current
    270 A
  • Mounting Mode
    Bolt-on
  • Number Of Poles
    3
  • Number Of Spaces
    3
  • Electrical Connection
    Lugs aluminium
  • Local Signalling
    Trip indicator
  • Trip Unit Rating
    875 A
  • Line Rated Current
    30 A
  • Product Or Component Type
    Miniature circuit-breaker
  • Maximum Operating Voltage
    480Y/277 V AC
  • Device Short Name
    EGB
  • Module Type
    E-Frame
  • Range Of Product
    125 A Frame EDB-EGB-EJB

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EGB34030CA on Powermatic Associates is $1,357.00. Order now.

EGB34030CA Related Documents

Catalog-1631035090724.pdfInstruction Sheet-1631035090715.pdfProduct Datasheet-1631035090709.pdf

Similar products from: Schneider Electric Industrial Automation Components

LC1D95M7 on Powermatic Associates

LC1D95M7

Schneider Electric

Schneider Electric LC1D95M7 is a magnetic contactor from the Deca sub-range, featuring screw connections and three poles (3P; 3NO). It has a rated current of 125A (AC-1) and 95A (440Vac; AC-3), with a mounting mode designed for DIN rail installation. The net width of the contactor is 85 mm, and it offers a degree of protection rated at IP20. The control voltage (AC) ranges from 176-242Vac (220Vac nom.; 50Hz; 0.8...1.1 x Uc) to 187-242Vac (220Vac nom.; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 1000 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 8 kV. This contactor is capable of handling rated active power ranging from 25kW (220-230Vac; AC-3) to 55kW (500Vac; AC-3), with specific ratings for various voltages up to 1000Vac. It also supports rated power (HP) for motors from 7.5HP (115Vac; single-phase) to 60HP (575-600Vac; 3-phase), under UL/CSA standards. The mechanical durability of the LC1D95M7 is rated at 4,000,000 operations, and its electrical durability (with load) is rated at 1,200,000 operations. The rated voltage (AC) for phase-to-phase connections is 1000 V.

17 in stock
MGN61508 on Powermatic Associates

MGN61508

Schneider Electric

Schneider Electric MGN61508 is a Miniature Circuit Breaker (MCB) designed for DC applications. It falls under the C60H-DC sub-range and features a rated current of 10A with a rated voltage of 250V DC. This MCB is equipped with 1 pole that is protected and utilizes a C tripping curve.

32 in stock
NSYTRACRE24 on Powermatic Associates

NSYTRACRE24

Schneider Electric

Schneider Electric - NSYTRACRE24

30 in stock
M9F43303 on Powermatic Associates

M9F43303

Schneider Electric

Schneider Electric M9F43303 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed with a 3-pole configuration. It has a rated current of 3A and features a rated insulation voltage (Ui) of 500V. This MCB operates with a rated voltage of 60Vdc and has a rated impulse voltage (Uimp) of 6kV. It offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc. The rated voltage for AC applications is 240V phase-to-neutral and 415V phase-to-phase. All three poles are protected, and it is equipped with a D tripping curve.

5 in stock
VW3A9921 on Powermatic Associates

VW3A9921

Schneider Electric

Schneider Electric VW3A9921 is an adapter designed for direct circuit breaker mounting. This mechanical adapter kit facilitates the integration of components by providing a compatible interface for secure and straightforward installation.

12 in stock
M9F53220 on Powermatic Associates

M9F53220

Schneider Electric

Schneider Electric M9F53220 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed with a 2 Pole configuration and a rated current of 20A. It features a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. The M9F53220 offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 125Vdc. It supports a rated voltage (AC) for phase-to-phase connections up to 440 V and has 2 protected poles. The tripping curve for this MCB is classified as D.

1 in stock

Manufacturer warranty

EGB34030CA Schneider Electric

$1,357.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$1,357.00

$1,357.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare EGB34030CA with other Industrial Automation Components products

Breaking Capacity

Circuit Breaker Applicati...

Protection Type

AWG Gauge

Net Weight

Breaking Capacity Code

Height

Depth

Tightening Torque

Width

Selected product

EGB34030CA
Backordered
EGB34030CA
Schneider Electric

Schneider Electric - EGB34030CA

Breaking Capacity35 kA 277 V AC 65 kA 240 V A...

Circuit Breaker ApplicationHACR rated HID rated

Protection TypeShort-circuit Overload

AWG GaugeAWG 12...AWG 6 aluminium AWG...

Net Weight4 lb(US) (1.81 kg)

Breaking Capacity CodeG

Height5.66 in (143.76 mm)

Depth4.05 in (102.87 mm)

Tightening Torque30.09 lbf.in (3.4 N.m) 0.00…...

Width2.94 in (74.68 mm)

EDB34040
34 in stock
EDB34040
Schneider Electric

Square D by Schneider Electric EDB34040 is a Miniature Circuit Breaker (MCB) designed for bolt-on mo...

Breaking Capacity18 kA 277 V AC 25 kA 240 V A...

Circuit Breaker Application-

Protection Type-

AWG GaugeAWG 12...AWG 2/0 aluminium A...

Net Weight-

Breaking Capacity Code-

Height-

Depth-

Tightening Torque-

Width-

M9F43303
5 in stock
M9F43303
Schneider Electric

Schneider Electric M9F43303 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designe...

Breaking Capacity6 kA Icu 440 V AC EN/IEC 609...

Circuit Breaker Application-

Protection Type-

AWG Gauge-

Net Weight-

Breaking Capacity Code-

Height-

Depth-

Tightening Torque-

Width-

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

Relevant products

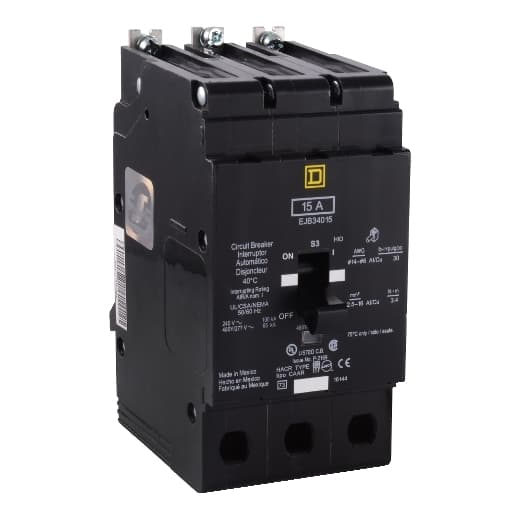

EGB34015SA on Powermatic Associates
