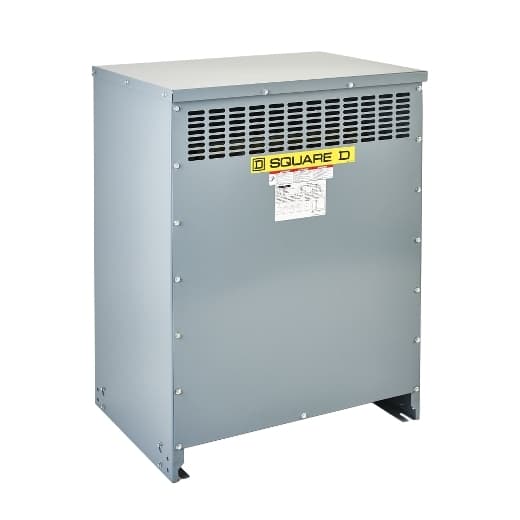

EX15T3HFNLP Schneider Electric Industrial Automation Components

Product Details

• Network Frequency
  60 Hz
• %IX
  0.0078 %
• Width
  25.51 in (648 mm)
• Depth
  20.98 in (533 mm)
• Device Application
  Low voltage electrical distribution
• Rated Operational Power In VA
  15 kVA
• Secondary Voltage
  208Y/120 V
• Height
  35.31 in (897 mm)
• Device Short Name
  DOE 2016
• %IZ
  0.018 %
• Range Of Product
  Square D
• Primary Voltage
  480 V delta
• Basic IMP Level (BIL)
  10 kV
• Product Or Component Type
  Transformer
• Let Through Current
  2.4 kA
• Transformer Type
  Energy efficient
• Coil Material
  Aluminium
• Phase
  3 phase
• X/R Ratio
  0.49
• Net Weight
  400.01 lb(US) (181.44 kg)
Type Of Cooling
Natural convection
DOE Efficiency
98.24 % at 35 % load factor , 167 °F (75.0 °C)
Sound Level
6 dB NEMA ST-20 39 dB
Transformer Losses
69.0 no load (core loss) 238.0 load loss (coil loss)
Temperature Rise
115 °C 220 °C insulated
Number Of Tap-Offs
2 2.5 % FCAN 4 2.5 % FCBN
Degree Of Protection
UL type 1 UL type 2, with 7400DS18K UL type 3R, with 7400WS18K
Electrical Connection
2 Hole Nema Pad primary 0.44 in (11.1 mm) 2 Hole Nema Pad secondary 0.44 in (11.1 mm) 4 Hole Nema Pad sec - XO 0.44 in (11.1 mm)
Mounting Support
Floor Floor, with 7400FMB Ceiling, with 7400CMB18K Wall, with 7400WMB18K20K
Transformer BTU/HR
257.805015136 16.6 % 286.18149999999997 25 % 438.442 50 % 692.2094999999999 75 % 1047.484 1.0 %
