Part#:EX45T3HFNLP

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

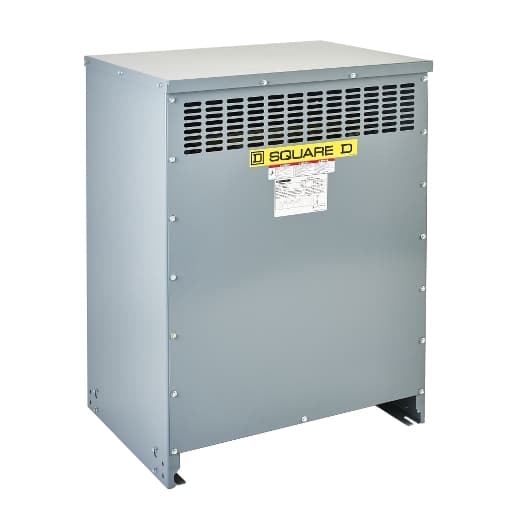

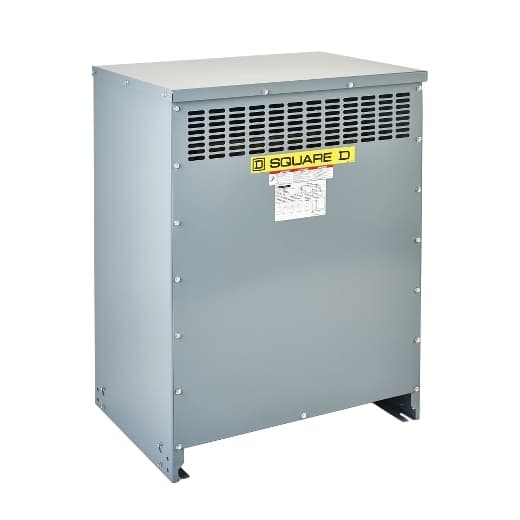

Schneider Electric - EX45T3HFNLP

Product Details

  • Network Frequency
    60 Hz
  • X/R Ratio
    1.6
  • Rated Operational Power In VA
    45 kVA
  • Height
    42.01 in (1067 mm)
  • Transformer Type
    Energy efficient
  • Secondary Voltage
    208Y/120 V
  • Let Through Current
    4.1 kA
  • Product Or Component Type
    DOE 2016 energy efficient transformer
  • Coil Material
    Copper
  • Depth
    22.76 in (578 mm)
  • Range Of Product
    Square D
  • %IX
    0.0257 %
  • Primary Voltage
    480 V delta
  • Device Application
    Low voltage electrical distribution
  • DOE Efficiency
    98.71 % at 35 % load factor , 167 °F (75.0 °C)
  • Width
    30.08 in (764 mm)
  • Phase
    3 phase
  • Basic IMP Level (BIL)
    10 kV
  • Type Of Cooling
    Natural convection
  • %IZ
    0.03 %
  • Device Short Name
    DOE 2016
  • Net Weight
    755.00 lb(US) (342.46 kg)
  • Sound Level
    1 dB NEMA ST-20 47 dB
  • Temperature Rise
    115 °C 220 °C insulated
  • Transformer Losses
    128.0 no load (core loss) 724.0 load loss (coil loss)
  • Number Of Tap-Offs
    2 2.5 % FCAN 4 2.5 % FCBN
  • Degree Of Protection
    UL type 1 UL type 2, with 7400DS20K UL type 3R, with 7400WS20K
  • Electrical Connection
    2 Hole Nema Pad primary 0.44 in (11.1 mm) 2 Hole Nema Pad secondary 0.44 in (11.1 mm) 4 Hole Nema Pad sec - XO 0.44 in (11.1 mm)
  • Mounting Support
    Floor Floor, with 7400FMB Wall, with 7400WMB18K20K Ceiling, with 7400CMB20K
  • Transformer BTU/HR
    504.807256128 16.6 % 591.129 25 % 1054.308 50 % 1826.273 75 % 2907.024 100 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
