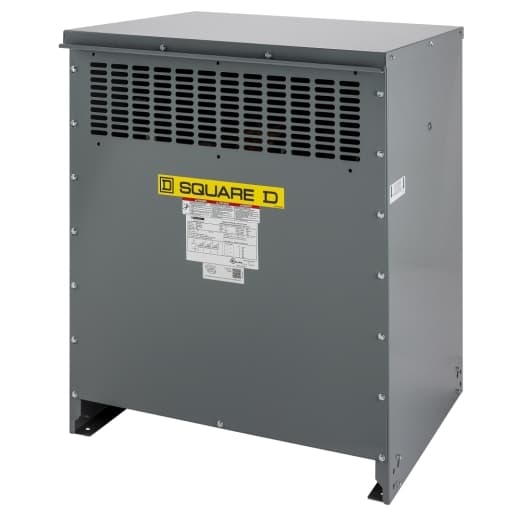

EXN150T1814H Schneider Electric Industrial Automation Components

Product Details

• Network Frequency
  60 Hz
• Primary Operational Current
  180.42 A 180.42 A 150 kVA
• Basic IMP Level (BIL)
  10 kV
• Rated Operational Power In VA
  150 kVA
• Phase
  3 phase
• Type Of Cooling
  Natural convection
• %IZ
  3.08 %
• Product Or Component Type
  DOE 2016 energy efficient transformer
• Range Of Product
  Square D
• Box Number
  22M
• Coil Material
  Aluminium
• Transformer Type
  Energy efficient
• Device Application
  Low voltage electrical distribution
• X/R Ratio
  1.67
• Device Short Name
  DOE 2016
• Secondary Voltage
  480Y/277 V
• Inrush Current
  1983 A
• Primary Voltage
  480 V delta
• %IX
  2.56 %
• Let Through Current
  5.86 kA
Width
33.66 in (855 mm)
DOE Efficiency
98.93 % at 35 % load factor , 167 °F (75.0 °C)
Net Weight
1012.01 lb(US) (459.04 kg)
Height
40.59 in (1031 mm)
Number Of Mounting Holes
0.51 in (13 mm)
Depth
32.56 in (827 mm)
Sound Level
47 dB 3 dB NEMA ST-20
Number Of Tap-Offs
2 2.5 % FCAN 4 2.5 % FCBN
Temperature Rise
150 °C 220 °C insulated
Transformer Losses
297 no load (core loss) 2719 load loss (coil loss)
Degree Of Protection
UL type 2 UL type 3R, with 7400WS22M
Electrical Connection
4 Hole Nema Pad secondary 0.44 in (11.1 mm) 6 Hole Nema Pad sec - XO 0.44 in (11.1 mm) 2 Hole Nema Pad primary 0.44 in (11.1 mm)
Mounting Support
Floor Floor, with 7400FMB Ceiling, with 7400CMB22M
Transformer BTU/HR
1271 16.6 % 1593 25 % 3333 50 % 6232 75 % 10291 100 %
