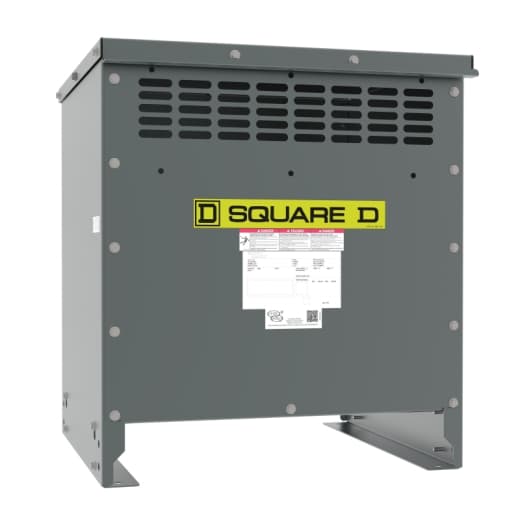

EXN15T3HF Schneider Electric Industrial Automation Components

Product Details

• X/R Ratio
  0.53
• Device Application
  Low voltage electrical distribution
• Type Of Cooling
  Natural convection
• Let Through Current
  1.05 kA
• Number Of Mounting Holes
  0.51 in (13 mm)
• Range Of Product
  Square D
• Secondary Voltage
  208Y/120 V
• Net Weight
  184.00 lb(US) (83.46 kg)
• Rated Operational Power In VA
  15 kVA
• Coil Material
  Aluminium
• %IX
  1.79 %
• Device Short Name
  DOE 2016
• Primary Voltage
  480 V delta
• Height
  23.98 in (609 mm)
• Network Frequency
  60 Hz
• DOE Efficiency
  98.00 % at 35 % load factor , 167 °F (75.0 °C)
• Width
  21.50 in (546 mm)
• Product Or Component Type
  DOE 2016 energy efficient transformer
• Primary Operational Current
  144.34 A 416.36 A 150 kVA
• Phase
  3 phase
Inrush Current
272 A
Transformer Type
Energy efficient
%IZ
3.98 %
Basic IMP Level (BIL)
10 kV
Box Number
17M
Depth
21.18 in (538 mm)
Temperature Rise
115 °C 220 °C insulated
Transformer Losses
50 no load (core loss) 538 load loss (coil loss)
Number Of Tap-Offs
2 2.5 % FCAN 4 2.5 % FCBN
Sound Level
6 dB NEMA ST-20 39 dB
Degree Of Protection
UL type 2 UL type 3R, with 7400WS22M
Electrical Connection
2 Hole Nema Pad secondary 0.44 in (11.1 mm) 4 Hole Nema Pad sec - XO 0.44 in (11.1 mm) 2 Hole Nema Pad primary 0.44 in (11.1 mm)
Mounting Support
Floor Floor, with 7400FMB Ceiling, with 7400CMB17M Wall, with 7400WMB17M
Transformer BTU/HR
222 16.6 % 285 25 % 630 50 % 1203 75 % 2006 100 %
