EZM31200GCBT Schneider Electric Industrial Automation Components

EZM31200GCBT on Powermatic Associates
Schneider Electric

Part#:EZM31200GCBT

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

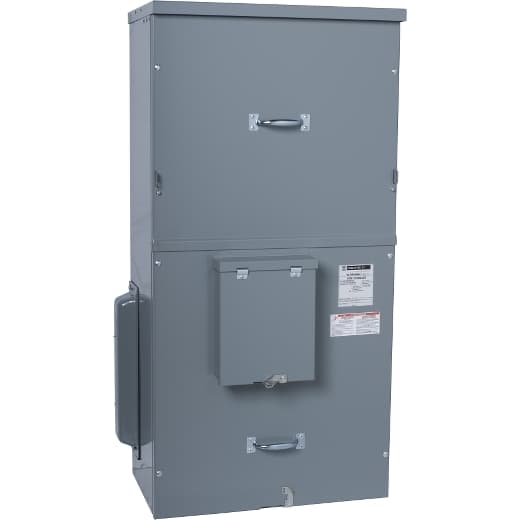

Square D by Schneider Electric EZM31200GCBT is a meter center main unit designed for surface mounting. It features a steel enclosure and aluminium busbar, offering a NEMA 3R degree of protection suitable for indoor and rainproof environments. The unit measures H1191mm x W602mm x D348mm (H46.9" x W23.69" x D13.69") and operates at a rated voltage of 208Y/120Vac and 240/120Vac (Delta). It is a three-phase (3PH-4W) indoor/rainproof metering center main unit pre-equipped with an incoming breaker. The rated current for both the main and busbar is 1200A. For connectivity, it supports a cross-section of 1 x 6AWG...300kcmil aluminium/copper lugs (ground) and 4 x 3/0AWG...500kcmil aluminium/copper lugs for both line and neutral connections.

Product Details

  • Material
    Aluminium busbar
  • Bus Rated Current
    1200 A
  • Device Mounting
    Surface
  • Product Or Component Type
    Meter center main unit
  • Height
    46.90 in (1191.26 mm)
  • Depth
    13.69 in (347.73 mm)
  • Main Rated Current
    1200 A
  • Enclosure Material
    Steel
  • Wiring Configuration
    4-wire
  • Main Type
    Main Circuit Breaker
  • Service Feed Location
    OH
  • Range Of Product
    EZ meter-pak
  • Width
    23.69 in (601.73 mm)
  • [Ue] Rated Operational Voltage
    208Y/120 V AC
  • Number Of Phases
    3 phase in 3 phase out
  • Included Items
    Closing plate Circuit-breaker3P 1200 A 65 kA
  • Electrical Connection
    Lugs 1 AWG 6...300 kcmil aluminium/copper) ground Lugs 4 AWG 3/0...500 kcmil aluminium/copper) line Lugs 4 AWG 3/0...500 kcmil aluminium/copper) neutral

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZM31200GCBT on Powermatic Associates is $23,127.00. Order now.
