EZM31200GCBTMS Schneider Electric Industrial Automation Components

EZM31200GCBTMS on Powermatic Associates
Schneider Electric

Part#:EZM31200GCBTMS

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

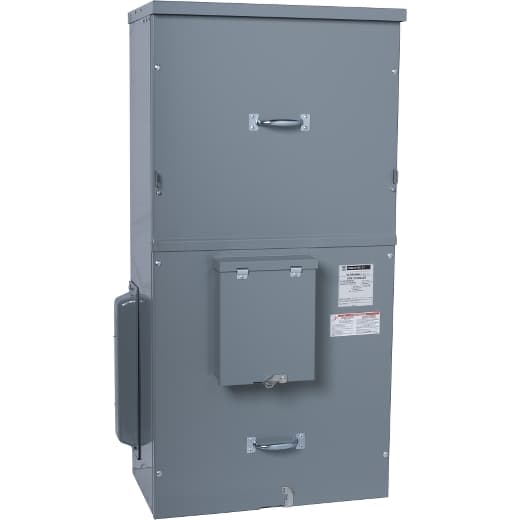

Square D by Schneider Electric EZM31200GCBTMS is a meter center main unit designed for wall mounting. It features an enclosure made from powder-coated and galvannealed steel, with a copper busbar. This unit offers a degree of protection rated at NEMA 3R, making it suitable for indoor or rainproof applications. The dimensions of the unit are H1192mm x W602mm x D346mm (H46.93" x W23.69" x D13.63"). It operates at a rated voltage of 208Y/120Vac and 240/120Vac (Delta) and is designed for a three-phase (3PH-4W) network. The EZM31200GCBTMS supports a main rated current and busbar rated current of 1200A. It is pre-equipped with an incoming breaker and an Energy Reduction Maintenance Switch (ERMS). The unit accommodates 4 x 3/0AWG to 500kcmil copper or aluminium lugs and 1 x 6AWG to 300kcmil lugs for ground connections.

Product Details

  • Type Of Installation
    Indoor/outdoor
  • Main Rated Current
    1200 A
  • Main Type
    Main Circuit Breaker
  • Depth
    13.63 in (346.20 mm)
  • Range Of Product
    EZ meter-pak
  • Material
    Copper busbar
  • Device Mounting
    Wall mounted
  • Wiring Configuration
    4-wire
  • Product Or Component Type
    Meter center main unit
  • Width
    23.69 in (601.73 mm)
  • Bus Rated Current
    1200 A
  • Height
    46.93 in (1192.02 mm)
  • [Ue] Rated Operational Voltage
    120/240 V AC 208Y/120 V AC
  • Service Feed Location
    UG OH
  • Electrical Connection
    Lugs 4 AWG 3/0...500 kcmil copper or aluminium) Lugs 1 AWG 6...300 kcmilground
  • Included Items
    Closing plate Circuit breaker3P 1200 A 65 kA main supply, ready assembled
  • Enclosure Material
    Powder Coated Steel Galvannealed steel
  • Number Of Phases
    3 phase in 3 phase out

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZM31200GCBTMS on Powermatic Associates is $38,182.50. Order now.

EZM31200GCBTMS Related Documents

Product Datasheet-1631035245956.pdf
