HC4250DB Schneider Electric Industrial Automation Components

HC4250DB on Powermatic Associates
Schneider Electric

Part#:HC4250DB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

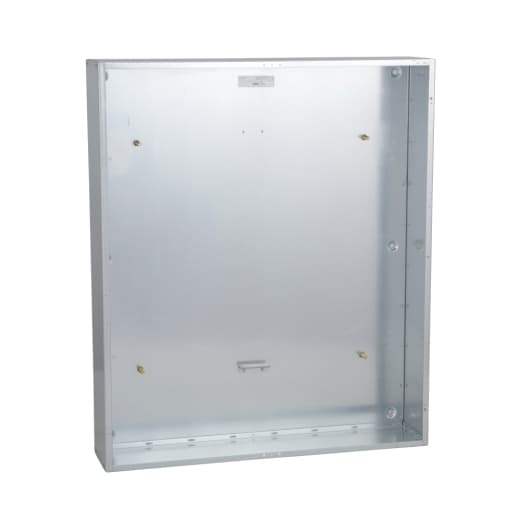

Square D by Schneider Electric HC4250DB is a panelboard from the HCP sub-range designed as a type 1 panelboard enclosure. It features dimensions of H1270mm x W1067mm (H50" x W42") and supports a rated current range from 400A to 1200A. This product is built to offer a degree of protection classified as NEMA 1.

Product Details

  • Product Or Component Type
    Enclosure
  • Net Weight
    104.90 lb(US) (47.58 kg)
  • Enclosure Nominal Depth
    9.49 in (241 mm)
  • Range Of Product
    I-Line
  • Enclosure Nominal Width
    42.01 in (1067 mm)
  • Device Short Name
    HCP
  • Device Application
    Panelboard
  • Enclosure Nominal Height
    50.00 in (1270.00254000508 mm)
  • Line Rated Current
    1200 A 800 A 400 A 600 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HC4250DB on Powermatic Associates is $1,443.00. Order now.

HC4250DB Related Documents

Catalog-1631034672799.pdfProduct Datasheet-1631034672780.pdfInstruction Sheet-1631034672806.pdf
