HDA36030 Schneider Electric Industrial Automation Components

HDA36030 on Powermatic Associates
Schneider Electric

Part#:HDA36030

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

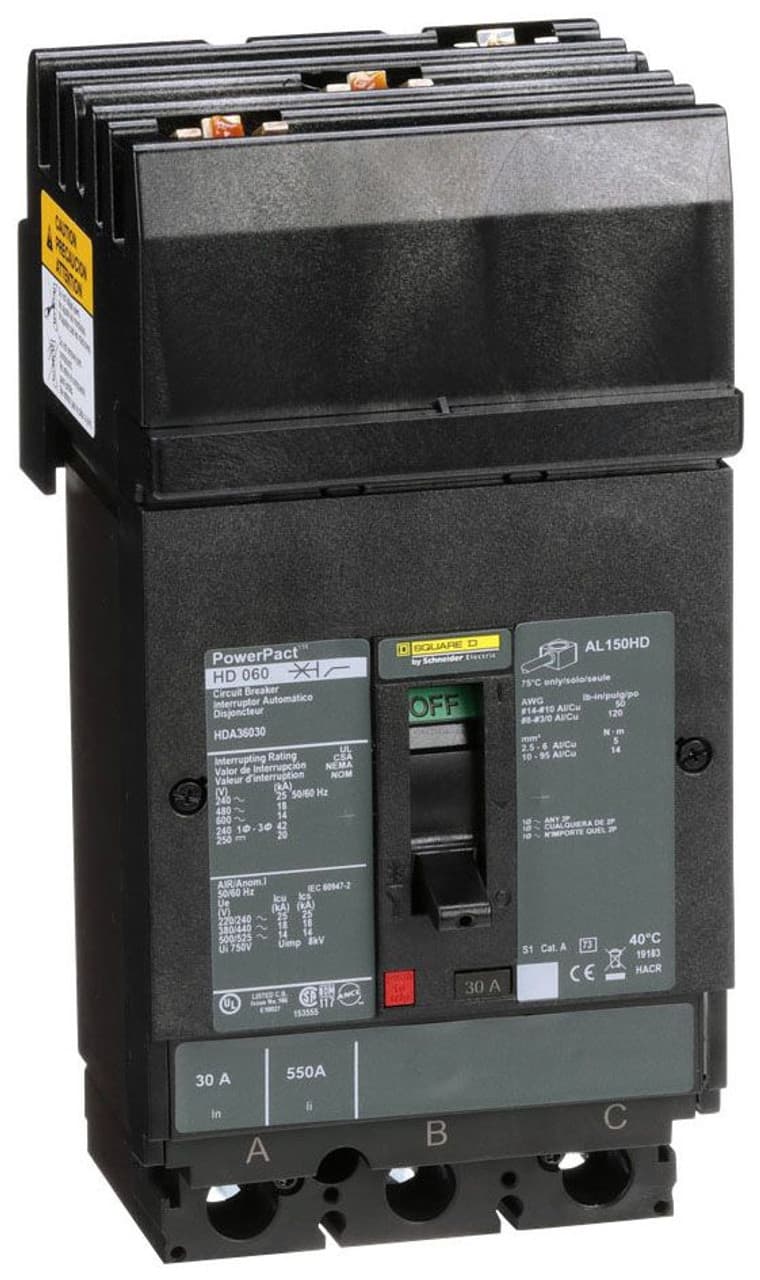

Square D by Schneider Electric HDA36030 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HDA sub-range, featuring a PowerPact H-Frame 150 TMD 3P 30A 600Vac/250Vdc 14kA I-line ABC 80% rated design. It offers a 3-pole (3P) configuration with thermal protection for overload and magnetic protection for short-circuit scenarios. The rated current is 30A, with a rated insulation voltage (Ui) of 750 V and rated voltages of 600Vac 600Y/347Vac for AC and 250Vdc for DC. This breaker mounts on I-line with line side isolated plug-on jaws plus a mechanical I-Line bracket mechanism, ensuring a robust attachment. It has a net height of 163 mm, a width of 104 mm, and a depth of 86 mm, with an IP40 degree of protection. The operating mode is manual toggle, with over-current protection settings fixed at 30A and short-circuit protection settings fixed at 350A for hold current and 750A for trip current. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 30 AT, with a frame current rating of 150 AF. Its short circuit breaking rating varies by voltage, including 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, 14kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display, and it falls under utilisation category A.

Product Details

  • TS PIK:
    109594619
  • Shipping Length:
    15.00 In.
  • Shipping Width:
    9.00 In.
  • Shipping Height:
    6.00 In.
  • UPC:
    78590141993
  • Shipping Weight:
    5.50 lbs.
  • Electrical Connection
    I-Line connection line Lugs load
  • Continuous Current Rating
    80 %
  • Depth
    4.8 in (121.92 mm)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Height
    9.73 in (247.14 mm)
  • Magnetic Hold Current
    350 A
  • Magnetic Tripping Current
    750 A
  • Width
    4.48 in (113.79 mm)
  • Mounting Mode
    I-Line
  • Phase Connection
    ABC
  • Breaking Capacity Code
    D
  • Number Of Poles
    3P
  • Line Rated Current
    30 A
  • Product Or Component Type
    Circuit breaker
  • Range Of Product
    PowerPact H

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HDA36030 on Powermatic Associates is $1,124.00. Order now.

HDA36030 Related Documents

Product Datasheet-1631034565295.pdf
