HGL36100C Schneider Electric Industrial Automation Components

HGL36100C on Powermatic Associates
Schneider Electric

Part#:HGL36100C

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

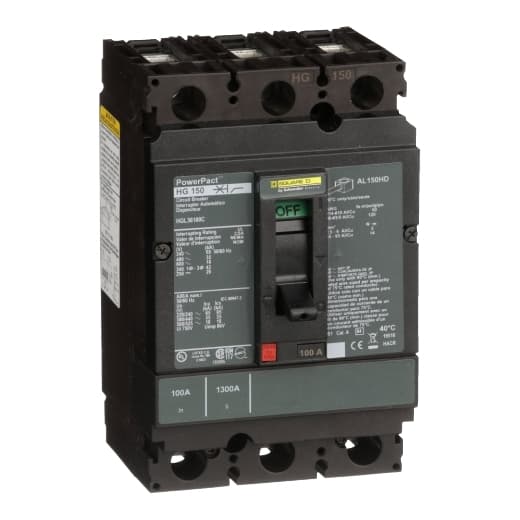

Square D by Schneider Electric HGL36100C is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGL sub-range, featuring a PowerPact H-Frame 150 TMD design. It is a 3-pole (3P) device with a rated current of 100A and offers thermal protection for overload and magnetic protection for short-circuit scenarios. The breaker is designed for a rated insulation voltage (Ui) of 750 V, with an AC rated voltage of 600Vac and 600Y/347Vac, and a DC rated voltage of 500Vdc. It supports a mounting mode of individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. The device has an IP40 degree of protection and operates manually via a toggle. Protection settings include over-current fixed at 100A, short-circuit hold current fixed at 900A, and short-circuit trip current fixed at 1700A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 100 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display, and it falls under the utilisation category A. Connections are made via lugs on both load and line sides.

Product Details

  • Depth
    4.36 in (110.74 mm)
  • Range Of Product
    PowerPact H
  • Width
    4.12 in (104.65 mm)
  • Breaking Capacity Code
    G
  • Mounting Mode
    Unit mount
  • Line Rated Current
    100 A
  • Magnetic Tripping Current
    1700 A
  • Product Or Component Type
    Circuit breaker
  • Height
    6.4 in (162.56 mm)
  • Number Of Poles
    3P
  • Continuous Current Rating
    100 %
  • Magnetic Hold Current
    900 A
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HGL36100C on Powermatic Associates is $2,042.00. Order now.
