Part#:HGL36100CU33X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

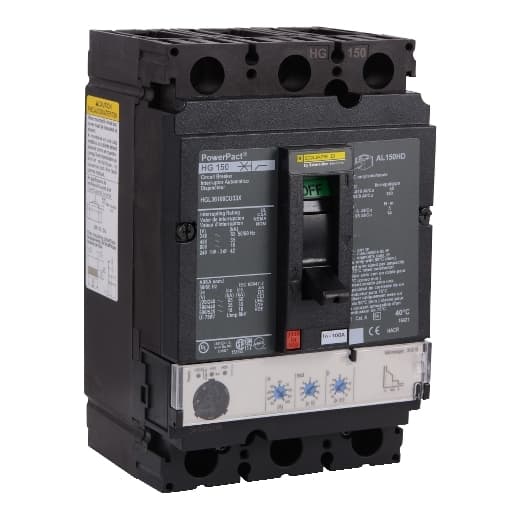

Square D by Schneider Electric HGL36100CU33X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGL sub-range, featuring a PowerPact H-Frame 150 Micrologic 3.2S (LSI) design. It is a 3-pole (3P) device with a rated current of 100A and offers protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. The breaker is designed for individual unit mount on plate, with lugs on both load and line sides for connection. It has a rated insulation voltage (Ui) of 750 V, rated voltages of 600Vac 600Y/347Vac and 500Vdc, and a degree of protection of IP40. The operating mode is manual toggle. Protection settings are adjustable with L protection ranging from 0.35 to 1 x In (35A to 100A), S protection from 1.5 to 10 x Ir (150A to 1000A), and I protection from 1.5 to 15 x In (150A to 1500A). The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. Dimensions are 163 mm in height, 104 mm in width, and 86 mm in depth. The trip current rating is 100 AT, with a frame current rating of 150 AF. Short circuit breaking ratings include 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, all according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2S (LSI) with no display, and it falls under utilisation category A.

Product Details

  • Height
    6.4 in (162.56 mm)
  • Breaking Capacity Code
    G
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Continuous Current Rating
    100 %
  • Product Or Component Type
    Circuit breaker
  • Line Rated Current
    100 A
  • Number Of Poles
    3P
  • Depth
    4.36 in (110.74 mm)
  • Range Of Product
    PowerPact H
  • Mounting Mode
    Unit mount
  • Width
    4.12 in (104.65 mm)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HGL36100CU33X on Powermatic Associates is $2,356.00. Order now.
