HGL36100M38X Schneider Electric Industrial Automation Components

HGL36100M38X on Powermatic Associates
Schneider Electric

Part#:HGL36100M38X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

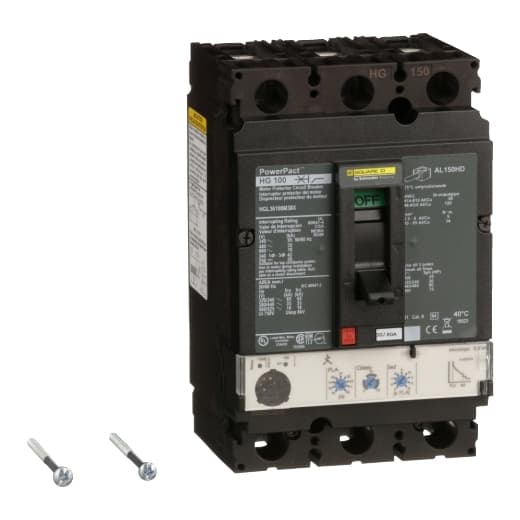

Square D by Schneider Electric HGL36100M38X is a Motor Protection Circuit Breaker (MPCB) within the PowerPacT HGL sub-range, designed for electronic motor protection, manual motor starting, and motor circuit protection. It features a PowerPact H-Frame 150 Micrologic 2.2M (LSI) design, suitable for 3-pole (3P) configurations with a 100A line rated current and 80A Full Load Amperes (FLA). The device operates at a rated insulation voltage (Ui) of 750V, with AC and DC rated voltages of 600Y/347Vac and 500Vdc respectively. It offers a degree of protection of IP40 and is mounted individually on a plate. The MPCB provides long-time (L), short-time with fixed time delay (S), and instantaneous (I) protection functions, with adjustable overload protection from 0.4 to 1 times the FLA (30A to 80A) and short-circuit protection with time delay adjustable from 5 to 13 times the ln (500A to 1300A), alongside a fixed instantaneous protection at 1500A. The unit's dimensions are 163 mm in height, 104 mm in width, and 86 mm in depth, with a manual toggle operating mode. It has a rated operating voltage (Ue) of 690V, a rated impulse voltage (Uimp) of 8kV, and a trip current rating of 100 AT. The frame current rating is 150 AF, with a short circuit breaking rating varying from 18kA to 65kA depending on the voltage and compliance with UL489 standards. The trip unit employs an electronic Micrologic 2.2M (LSI) technology without a display, categorized under utilization category A.

Product Details

  • Width
    4.12 in (104.65 mm)
  • Mounting Mode
    Unit mount
  • Breaking Capacity Code
    G
  • [Ith] Conventional Free Air Thermal Current
    14…25 A
  • Height
    6.4 in (162.56 mm)
  • Line Rated Current
    100 A
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Product Or Component Type
    Motor Circuit Protector
  • Range Of Product
    PowerPact H
  • Depth
    4.36 in (110.74 mm)
  • Number Of Poles
    3P
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HGL36100M38X on Powermatic Associates is $3,343.50. Order now.
