HGL36100U31X Schneider Electric Industrial Automation Components

HGL36100U31X on Powermatic Associates
Schneider Electric

Part#:HGL36100U31X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

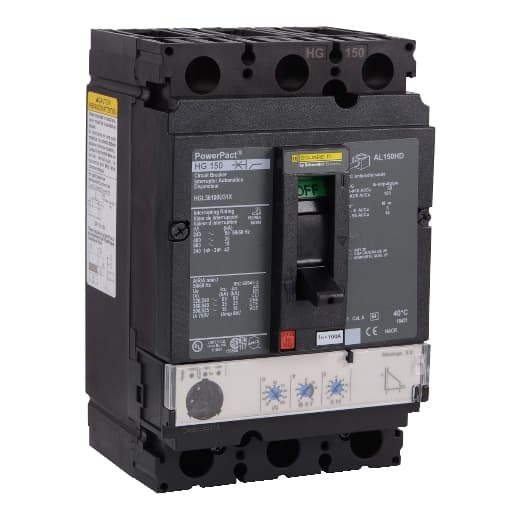

Square D by Schneider Electric HGL36100U31X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGL sub-range, featuring a PowerPact H-Frame 150 Micrologic 3.2 (LI) design. It is a 3-pole (3P) device with a rated current of 100A and offers both long-time (L) and instantaneous (I) protection functions. This MCCB is designed for individual unit mount on plate, with lugs on both load and line sides for connection. It has a rated insulation voltage (Ui) of 750 V, an AC rated voltage of 600Vac 600Y/347Vac, and a DC rated voltage of 500Vdc. The device's net dimensions are 163 mm in height, 104 mm in width, and 86 mm in depth, with a degree of protection of IP40. It operates manually via a toggle and offers protection settings adjustable for overload (0.35...1 x In or 35A...100A) and short-circuit (1.5...15 x In or 150A...1500A). The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 100 AT, with a frame current rating of 150 AF. Its short circuit breaking rating varies by voltage, including 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at both 250Vdc and 500Vdc, all according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2 (LI) with no display, and it falls under utilisation category A.

Product Details

  • Mounting Mode
    Unit mount
  • Number Of Poles
    3P
  • Width
    4.12 in (104.65 mm)
  • Product Or Component Type
    Circuit breaker
  • Height
    6.4 in (162.56 mm)
  • Depth
    4.36 in (110.74 mm)
  • Range Of Product
    PowerPact H
  • Continuous Current Rating
    80 %
  • Breaking Capacity Code
    G
  • Line Rated Current
    100 A
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HGL36100U31X on Powermatic Associates is $1,860.00. Order now.
