Part#:HJL36015C

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

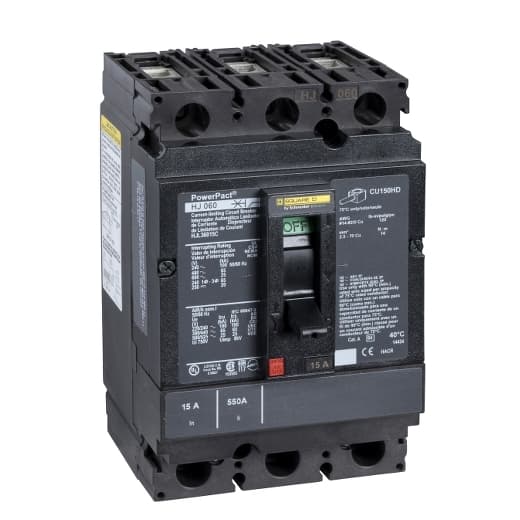

Square D by Schneider Electric HJL36015C is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJL sub-range, featuring a PowerPact H-Frame 150 TMD design. It is a 3-pole (3P) device with a rated current of 15A and offers thermal protection (overload) and magnetic protection (short-circuit). This MCCB has a rated insulation voltage (Ui) of 750 V, a rated voltage (AC) of 600Vac 600Y/347Vac, and a rated voltage (DC) of 250Vdc. It is designed for individual unit mount on plate with a net height of 163 mm, a net width of 104 mm, and a net depth of 86 mm. The degree of protection is IP40, and it operates with a toggle (manual) mechanism. Protection settings include over-current fixed at 15A, short-circuit hold current fixed at 350A, and short-circuit trip current fixed at 750A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 15 AT, and the frame current rating is 150 AF. Its short circuit breaking rating varies with voltage, including 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display, and it falls under utilisation category A. Connection is facilitated by lugs on both load and line sides.

Product Details

  • Magnetic Hold Current
    350 A
  • Mounting Mode
    Unit mount
  • Range Of Product
    PowerPact H
  • Breaking Capacity Code
    J
  • Width
    4.12 in (104.65 mm)
  • Product Or Component Type
    Circuit breaker
  • Number Of Poles
    3P
  • Continuous Current Rating
    100 %
  • Magnetic Tripping Current
    750 A
  • Depth
    4.36 in (110.74 mm)
  • Line Rated Current
    15 A
  • Height
    6.4 in (162.56 mm)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HJL36015C on Powermatic Associates is $3,508.50. Order now.
