HJL36020C Schneider Electric Industrial Automation Components

HJL36020C on Powermatic Associates
Schneider Electric

Part#:HJL36020C

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

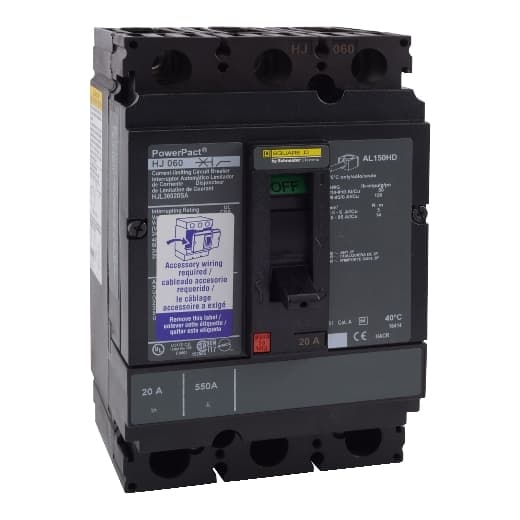

Square D by Schneider Electric HJL36020C is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJL sub-range, featuring a PowerPact H-Frame 150 TMD design. It is a 3-pole (3P) device with a rated current of 20A and offers both thermal protection (overload) and magnetic protection (short-circuit). This MCCB has a rated insulation voltage (Ui) of 750 V, a rated voltage (AC) of 600Vac 600Y/347Vac, and a rated voltage (DC) of 250Vdc. It is designed for individual unit mount on plate with lugs on both load and line sides for connection. The device has a net height of 163 mm, a net width of 104 mm, and a net depth of 86 mm, with a degree of protection of IP40. Its operating mode is manual toggle, and it features over-current protection fixed at 20A, short-circuit hold current fixed at 350A, and short-circuit trip current fixed at 750A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 20 AT, with a frame current rating of 150 AF. Its short circuit breaking rating varies with voltage, up to 100kA at 240Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display, and it falls under utilisation category A.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Depth
    4.36 in (110.74 mm)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Height
    6.4 in (162.56 mm)
  • Continuous Current Rating
    100 %
  • Width
    4.12 in (104.65 mm)
  • Breaking Capacity Code
    J
  • Magnetic Tripping Current
    750 A
  • Line Rated Current
    20 A
  • Magnetic Hold Current
    350 A
  • Range Of Product
    PowerPact H
  • Product Or Component Type
    Circuit breaker
  • Mounting Mode
    Unit mount
  • Number Of Poles
    3P

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HJL36020C on Powermatic Associates is $2,339.00. Order now.
