HJL36060C Schneider Electric Industrial Automation Components

HJL36060C on Powermatic Associates
Schneider Electric

Part#:HJL36060C

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

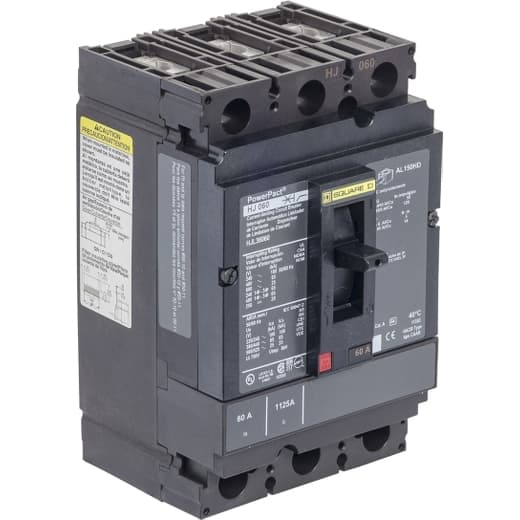

Square D by Schneider Electric HJL36060C is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJL sub-range, featuring a PowerPact H-Frame 150 TMD design. It is a 3-pole (3P) device with a rated current of 60A and offers both thermal protection (overload) and magnetic protection (short-circuit). This MCCB has a rated insulation voltage (Ui) of 750 V, with AC rated voltages of 600Vac and 600Y/347Vac, and a DC rated voltage of 250Vdc. It is designed for individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. The device has an IP40 degree of protection and operates manually via a toggle. Its protection settings include over-current fixed at 60A, short-circuit hold current fixed at 800A, and short-circuit trip current fixed at 1450A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 60 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed), with no display, and it falls under utilisation category A. Connections are made via lugs on both load and line sides.

Product Details

  • Line Rated Current
    60 A
  • Width
    4.12 in (104.65 mm)
  • Number Of Poles
    3P
  • Depth
    4.36 in (110.74 mm)
  • Magnetic Hold Current
    800 A
  • Continuous Current Rating
    100 %
  • Range Of Product
    PowerPact H
  • Height
    6.4 in (162.56 mm)
  • Product Or Component Type
    Circuit breaker
  • Breaking Capacity Code
    J
  • Magnetic Tripping Current
    1450 A
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Mounting Mode
    Unit mount
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
