Part#:HJL36100U33X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

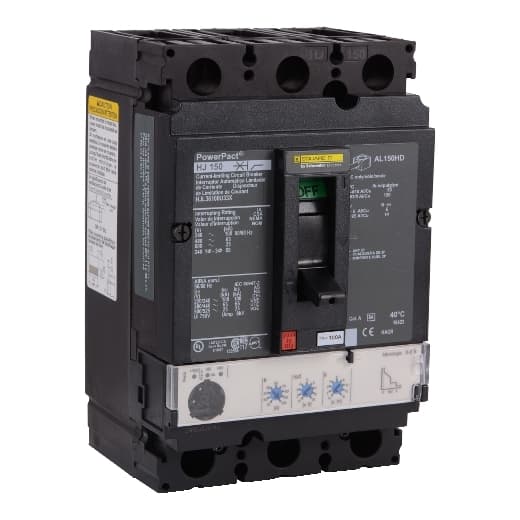

Square D by Schneider Electric HJL36100U33X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJL sub-range, featuring a PowerPact H-Frame 150 Micrologic 3.2S (LSI) design. It is a 3-pole (3P) device with a rated current of 100A and offers protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. The breaker is designed for 600Vac/250Vdc with a 25kA short circuit breaking rating at 600Vac and a 20kA rating at 250Vdc, utilizing lugs on both load and line sides for connection. It has a rated insulation voltage (Ui) of 750V, a rated operating voltage (Ue) of 690V, and a rated impulse voltage (Uimp) of 8kV. The device is mounted individually on a plate, with dimensions of 163mm in height, 104mm in width, and 86mm in depth, and it features a degree of protection of IP40. The operating mode is manual toggle, and the protection settings are adjustable for overload (0.35...1 x In), short-circuit with time delay (1.5...10 x lr), and instantaneous short-circuit protection (1.5...15 x In). The trip unit is an electronic Micrologic Standard 3.2S (LSI) with no display, and it falls under utilisation category A.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Width
    4.12 in (104.65 mm)
  • Continuous Current Rating
    80 %
  • Depth
    4.36 in (110.74 mm)
  • Height
    6.4 in (162.56 mm)
  • Range Of Product
    PowerPact H
  • Line Rated Current
    100 A
  • Mounting Mode
    Unit mount
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Breaking Capacity Code
    J
  • Product Or Component Type
    Circuit breaker
  • Number Of Poles
    3P

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
