Part#:HJL36150U31X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

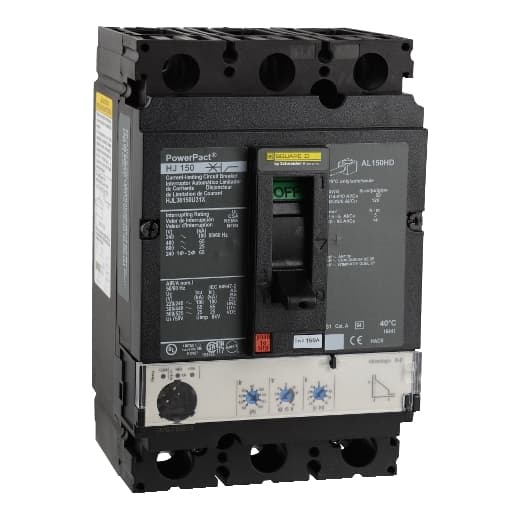

Square D by Schneider Electric HJL36150U31X is a Moulded Case Circuit Breaker (MCCB) from the PowerPacT HJL sub-range, featuring a PowerPact H-Frame 150 Micrologic 3.2 (LI) design. It is a 3-pole (3P) device with a rated current of 150A and offers both long-time (L) and instantaneous (I) protection functions. The breaker is designed for individual unit mount on plate, with lugs on both load and line sides for connection. It has a rated insulation voltage (Ui) of 750 V, rated voltage (AC) of 600Vac 600Y/347Vac, and a rated voltage (DC) of 250Vdc. The device operates manually via a toggle and has protection settings adjustable for overload (0.3...1 x In, 50A...150A) and short-circuit (1.5...15 x In, 225A...2250A) conditions. It features a net height of 163 mm, width of 104 mm, and depth of 86 mm, with a degree of protection of IP40. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 150 AT, with a frame current rating of 150 AF. Its short circuit breaking rating varies by voltage, including 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2 (LI) with no display, and it falls under utilisation category A.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Continuous Current Rating
    80 %
  • Depth
    4.36 in (110.74 mm)
  • Width
    4.12 in (104.65 mm)
  • Number Of Poles
    3P
  • Line Rated Current
    150 A
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Height
    6.4 in (162.56 mm)
  • Breaking Capacity Code
    J
  • Range Of Product
    PowerPact H
  • Product Or Component Type
    Circuit breaker
  • Mounting Mode
    Unit mount

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
