Part#:HL3IMA24C1

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

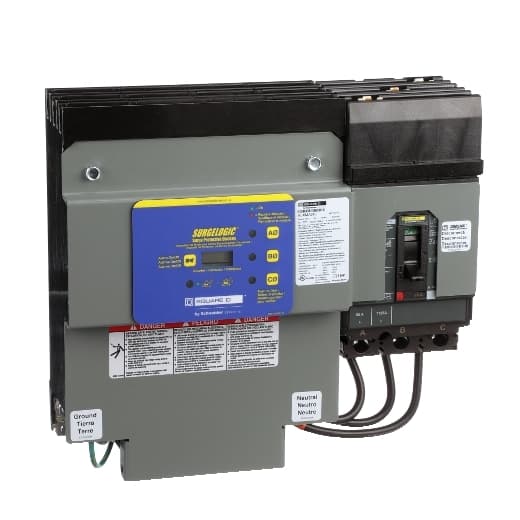

Surge protection device, Surgelogic, HL, 240kA, 240/120 VAC delta, 3 phase, 4 wire, SPD type 1

Product Details

  • Number Of Phases
    3 phase
  • Breaking Capacity
    50 kA
  • Max Number Of Poles
    3
  • Product
    Surge protection device
  • SCCR
    200 kA
  • Cable Length
    19.02 in (483 mm)
  • Device Short Name
    IMA
  • Wiring Configuration
    4-wire
  • Rated Current
    60 A
  • Depth
    5.59 in (142.1 mm)
  • Type
    HL
  • Trip Unit Technology
    Thermal-magnetic
  • Height
    12.16 in (308.9 mm)
  • Voltage Rating
    240/120 V delta AC
  • Range
    Surgelogic
  • MCOV
    150 V
  • Surge Current
    240 kA
  • Width
    13.46 in (341.9 mm)
  • Mounting Support
    Panel mounting
  • Local Signalling
    Status LED green per phase normal operation Status LED red per phase fault
  • Connection
    I-Line line Lugs ground AWG 6 copper 35.40 lbf.in (4 N.m) Lugs neutral AWG 6 copper 35.40 lbf.in (4 N.m)
  • Provided Equipment
    Alarm enable/disable switch Surge counter Circuit breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
