HL6IMA24C Schneider Electric Industrial Automation Components

Name: HL6IMA24C
Brand: Schneider Electric
Price: 15423 USD
Availability: BackOrder

Part#:HL6IMA24C

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

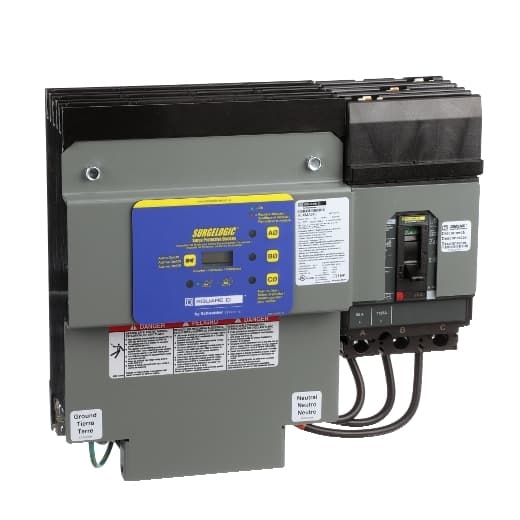

Schneider Electric - HL6IMA24C

Product Details

Wiring Configuration
3-wire
MCOV
320 V
Product
Surge protection device
Rated Current
60 A
Breaking Capacity
50 kA
Surge Current
240 kA
Mounting Support
Panel mounting
Cable Length
19.02 in (483 mm)
Number Of Phases
3 phase
Max Number Of Poles
3
Device Short Name
IMA
Width
13.46 in (341.9 mm)
Voltage Rating
240 V delta AC
Height
12.16 in (308.9 mm)
Type
HL
Depth
5.59 in (142.1 mm)
Trip Unit Technology
Thermal-magnetic
Range
Surgelogic
SCCR
200 kA
Local Signalling
Status LED green per phase normal operation Status LED red per phase fault

Provided Equipment

Alarm enable/disable switch Surge counter Circuit breaker

Connection

I-Line line Lugs ground AWG 6 copper 35.40 lbf.in (4 N.m) Lugs neutral AWG 6 copper 35.40 lbf.in (4 N.m)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HL6IMA24C on Powermatic Associates is $15,423.00. Order now.
