HOM120CAFI Schneider Electric Industrial Automation Components

HOM120CAFI on Powermatic Associates
Schneider Electric

Part#:HOM120CAFI

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

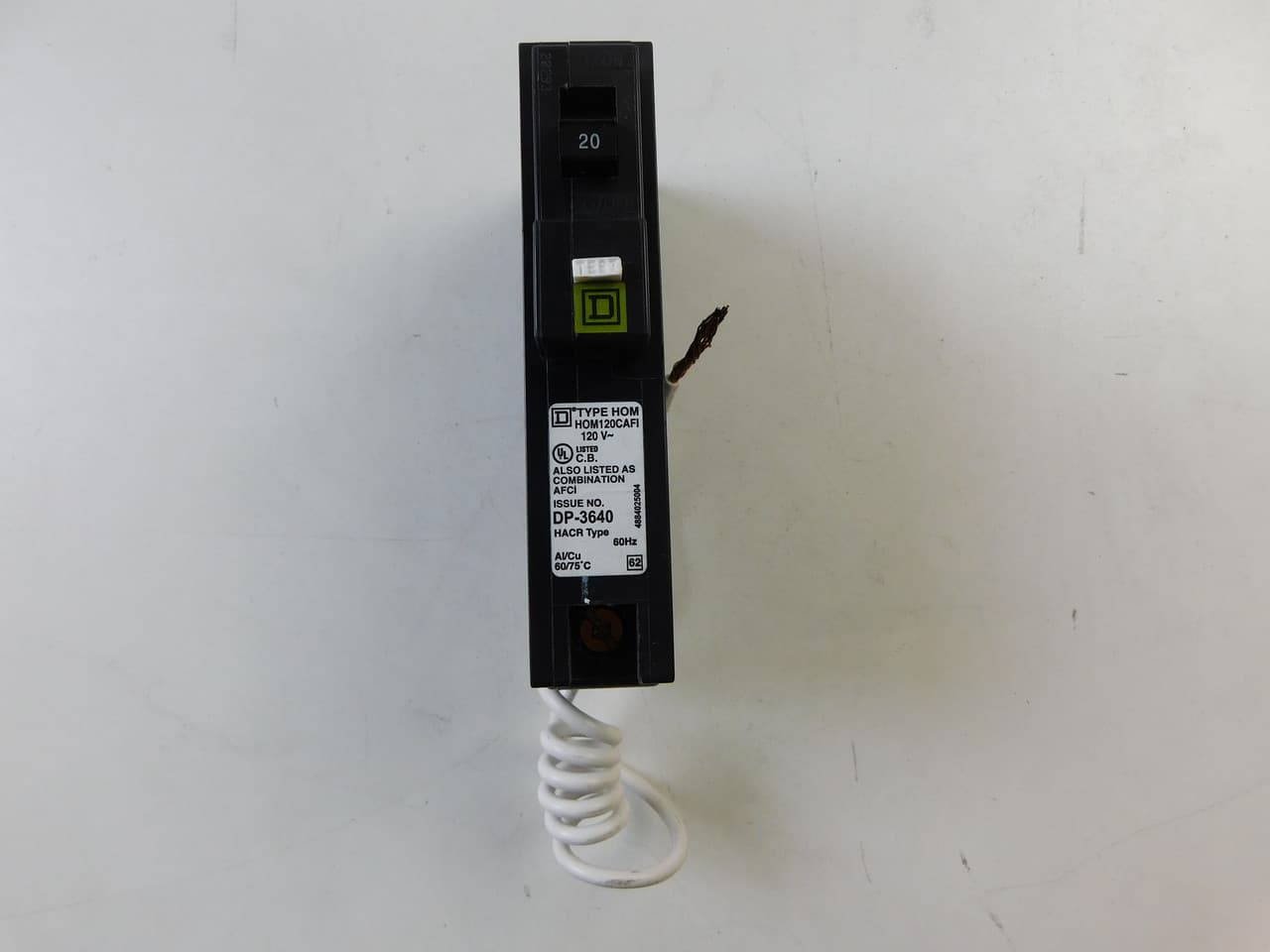

Schneider Electric - HOM120CAFI

Product Details

  • Number Of Poles
    1P
  • Height
    3.13 in (79.50 mm)
  • Voltage Rating
    120 V AC
  • Ratings
    HACR rated
  • Current Rating
    20 A
  • Number Of Spaces
    1
  • Product
    Miniature circuit-breaker
  • Circuit Breaker Type
    Combination ARC-fault
  • Mounting Type
    Plug-in
  • Tightening Torque
    35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8)
  • Short Circuit Current Rating
    10 kA
  • Certifications
    UL Listed
  • Connections - Terminals
    Pigtail neutral
  • Range
    Homeline
  • Wire Size
    AWG 14...AWG 8 aluminium/copper)1
  • Width
    1 in (25.40 mm)
  • Electrical Connection
    Screw clamp terminals
  • Depth
    2.98 in (75.69 mm)
  • Approval:
    UL
  • Interrupting Rating:
    10 kA
  • Amps:
    32 A
  • Size:
    1 Inch Width x 2.98 Inch Depth x 3.13 Inch Height
  • Wire Size:
    14 to 8 AWG (Aluminum/Copper)
  • Shipping Width:
    4.00 In.
  • Type:
    Miniature
  • Application:
    Heating
  • Shipping Weight:
    0.60
  • Terminal Type:
    Screw Clamp
  • UPC:
    785901601517
  • Mounting:
    Plug-In
  • Shipping Height:
    2.00 In.
  • Used On:
    Loadcenter
  • Shipping Length:
    7.00 In.
  • Poles:
    1
  • Volts:
    120 VAC
  • Construction Feature:
    Arc Fault Circuit Interrupter

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HOM120CAFI on Powermatic Associates is $267.00. Order now.
