HU365 Schneider Electric Industrial Automation Components

HU365 on Powermatic Associates
Schneider Electric

Part#:HU365

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

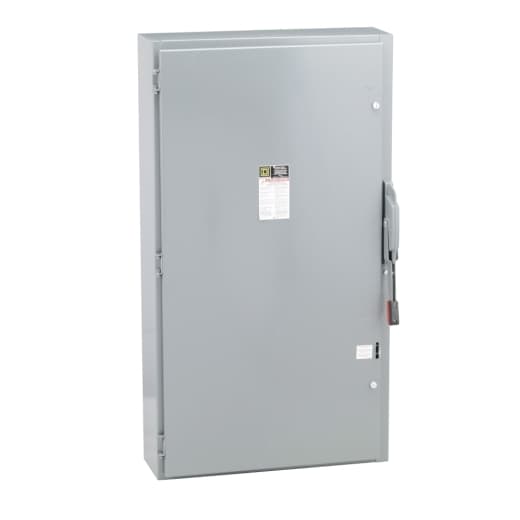

Schneider Electric HU365 is a heavy-duty single throw safety switch (non-fused) designed for disconnecting power. It falls under the sub-range of safety switches, specifically tailored for heavy-duty applications. This switch features 3 poles and is capable of handling a rated current of 400 A. The dimensions of the HU365 include a net height of 1276 mm, a net width of 702 mm, and a net depth of 257 mm, ensuring it fits into various installation environments. It operates via a toggle mechanism and is equipped with lugs type terminals for secure wire connections. The HU365 is designed to work with a phase-to-phase rated voltage of 600 V AC, making it suitable for a wide range of industrial applications.

Product Details

  • Device Application
    Heavy application
  • Current Rating
    400 A
  • Wiring Configuration
    3-wire
  • Phase
    3 phase
  • Enclosure Rating
    NEMA 1 steel
  • Net Weight
    169.98 lb(US) (77.1 kg)
  • Number Of Poles
    3
  • Width
    27.63 in (701.80 mm)
  • Voltage Rating
    600 V AC/DC
  • Depth
    10.13 in (257.30 mm)
  • Factory Installed Neutral
    None
  • Mounting Type
    Surface
  • Wire Size
    AWG 1/0...750 kcmil copper or aluminium
  • Duty Rating
    Heavy duty
  • Tightening Torque
    550 lbf.in (62.14 N.m) (AWG 1/0...750 kcmil)
  • Product
    Single Throw Safety Switch
  • Electrical Connection
    Lugs
  • Disconnect Type
    Non-fusible disconnect
  • Height
    50.25 in (1276.35 mm)
  • Maximum Horse Power Rating
    125 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 250 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 350 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 50 hp 250 V at DC 50 hp 600 V at DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HU365 on Powermatic Associates is $2,804.00. Order now.

HU365 Related Documents

Product Datasheet-1631040430930.pdfInstruction Sheet-1631040430935.pdfCatalog-1631040430948.pdf
