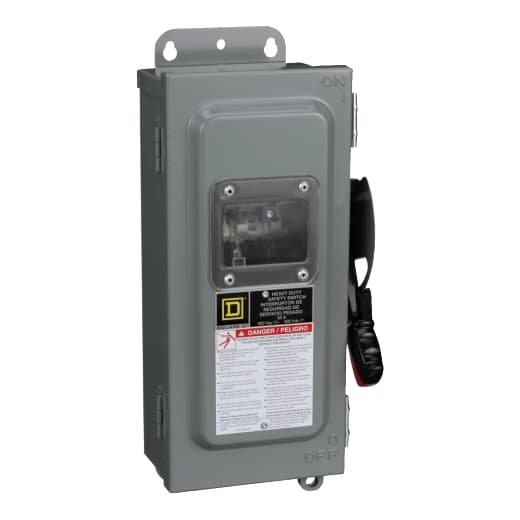

HU361AWKEIVW Schneider Electric Electronic Components

Product Details

• Voltage Rating
  600 V AC/DC
• Depth
  5.04 in (128.02 mm)
• Phase
  3 phase
• Duty Rating
  Heavy duty
• Width
  6.57 in (166.88 mm)
• Mounting Type
  Surface
• Disconnect Type
  Non-fusible disconnect
• Net Weight
  11.02 lb(US) (5 kg)
• Current Rating
  30 A
• Product
  Single Throw Safety Switch
• Height
  14.6 in (370.84 mm)
• Enclosure Rating
  NEMA 3R/12
• Number Of Poles
  3
• Wiring Configuration
  3-wire
• Factory Installed Neutral
  None
• Device Application
  Heavy application
• Wire Size
  AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper
• Tightening Torque
  45 lbf.in (5.08 N.m) 0.02 in² (13.3 mm²) (AWG 6) 40 lbf.in (4.52 N.m) 0.01 in² (8.367 mm²) (AWG 8) 35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.06…5.261 mm²) (AWG 14...AWG 10)
• Maximum Horse Power Rating
  5 hp 240 V at AC 50-60 Hz for 1 phase conforming to NEC 430.52 10 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 7.5 hp 480 V at AC 50-60 Hz for 1 phase conforming to NEC 430.52 20 hp 480 V at AC 50-60 Hz for 3 phase conformin
