HU363WA Schneider Electric Industrial Automation Components

HU363WA on Powermatic Associates
Schneider Electric

Part#:HU363WA

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

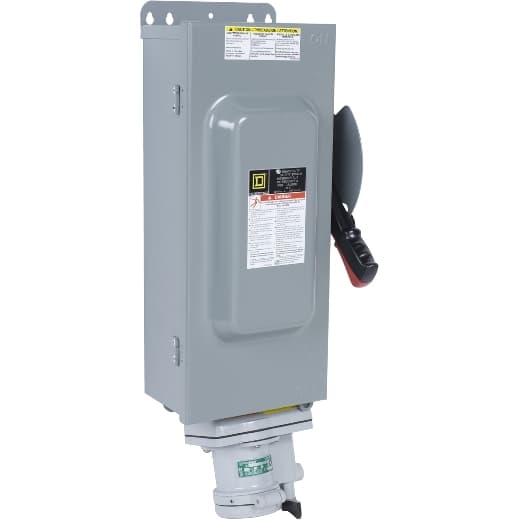

Schneider Electric - HU363WA

Product Details

  • Product
    Receptacle Switch
  • Width
    10.5 in (266.70 mm)
  • Phase
    3 phase
  • Number Of Poles
    3
  • Depth
    6.81 in (172.97 mm)
  • For Use With
    Plug ACP1034CD Appleton Powertite
  • Disconnect Type
    Non-fusible disconnect switch
  • Enclosure Rating NEMA 3R
    NEMA 1
  • Wire Configuration
    4-wire
  • Height
    21.85 in (554.99 mm)
  • Current Rating
    100 A
  • Electrical Connection
    Receptacle
  • Mounting Type
    Surface
  • Voltage Rating
    600 V AC 250 V DC
  • Wire Size
    AWG 12...AWG 1/0 aluminium AWG 14...AWG 1/0 copper
  • Tightening Torque
    50 lbf.in (5.65 N.m) (AWG 3...AWG 1) 45 lbf.in (5.08 N.m) (AWG 6...AWG 4) 40 lbf.in (4.52 N.m) (AWG 8) 35 lbf.in (3.95 N.m) (AWG 14...AWG 10)
  • Maximum Horse Power Rating
    75 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 100 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 20 hp 250 V at DC conforming to NEC 430.52

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

HU363WA Related Documents

Instruction Sheet-1631040789092.pdfProduct Datasheet-1631040789087.pdfCatalog-1631040789098.pdf

Similar products from: Schneider Electric Industrial Automation Components

M9A26969 on Powermatic Associates

M9A26969

Schneider Electric

Schneider Electric M9A26969 is a tripping coil designed for undervoltage trip coil release (MNx) applications. It belongs to the sub-range of tripping coils and is engineered for DIN rail mounting. This part operates with a control voltage of 230Vac AC.

0 in stock
XB7EV04MP on Powermatic Associates

XB7EV04MP

Schneider Electric

Schneider Electric XB7EV04MP is a monolithic pilot light designed for signaling applications, featuring an integral LED for illumination. This component, part of the XB7 sub-range, is constructed with a plastic body and has a round shape. It offers a rated impulse voltage (Uimp) of 6 kV and is protected to a degree of IP65, NEMA 4, and NEMA 12, ensuring its suitability for various industrial environments. The pilot light operates on a network frequency of 50/60 Hz and requires a supply voltage of 230 V AC. It has a diameter of 22 mm, with net dimensions of 29 mm in height, 54 mm in depth, and 29 mm in width. The light emitted by the LED is red, and it features screw-clamp type terminals for connection.

0 in stock
MG17416 on Powermatic Associates

MG17416

Schneider Electric

Schneider Electric MG17416 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. It features a rated current of 15A and operates on a single pole (1 Pole(s)) configuration. The rated operating voltage (Ue) for this MCB is 277 V. It offers a short circuit breaking rating of 10kA AIR at 240Vac, 5kA AIR at 277Vac, and 10kA AIR at 65Vdc, with protection extended to 1 Pole(s). The tripping curve for this device is classified as type C.

0 in stock
GVAD0110 on Powermatic Associates

GVAD0110

Schneider Electric

Schneider Electric GVAD0110 is an auxiliary contact designed for use within the GV2 sub-range, providing both a breaker trip signal and status indication (Open / Closed). It features 1 Normally Open (NO) auxiliary contact and 1 Normally Closed (NC) auxiliary contact, catering to a variety of signaling needs in automation systems.

22 in stock
LC1DT20BL on Powermatic Associates

LC1DT20BL

Schneider Electric

Schneider Electric LC1DT20BL is a magnetic contactor from the Deca sub-range, designed with a low-consumption coil that uses less than 2.4W. It features screw connections for secure installation and operates with 4 poles (4NO) capable of handling a rated current of 20A under AC-1 conditions. This contactor is designed for DIN rail mounting, ensuring a compact and efficient setup with a net width of 45 mm. It offers a degree of protection rated at IP20 and operates with a control voltage range of 19.2-30Vdc, nominally at 24Vdc, which is 0.8 to 1.25 times the control voltage (Uc). The LC1DT20BL can handle a rated operating voltage (Ue) up to 690 V and is equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both rated for instantaneous operation. The contacts are designed to withstand a rated impulse voltage (Uimp) of 6 kV. With mechanical durability rated at 15 million operations at no load, this contactor is built for longevity. It supports a phase-to-phase rated voltage (AC) of 690 V and maintains a power consumption of 2.4 W.

2 in stock
MG17444 on Powermatic Associates

MG17444

Schneider Electric

Schneider Electric MG17444 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. This 2-pole MCB is rated for a current of 5A and has an operating voltage (Ue) of 480V. It features a short circuit breaking rating of 10kA AIR at 240Vac, 5kA AIR at 480Y/277Vac, and 10kA AIR at 125Vdc. Both poles are protected, and it utilizes a C tripping curve.

2 in stock

Manufacturer warranty

HU363WA Schneider Electric

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare HU363WA with other Industrial Automation Components products

Product

Width

Phase

Number Of Poles

Depth

For Use With

Disconnect Type

Enclosure Rating NEMA 3R

Wire Configuration

Height

Selected product

HU363WA
Backordered
HU363WA
Schneider Electric

Schneider Electric - HU363WA

ProductReceptacle Switch

Width10.5 in (266.70 mm)

Phase3 phase

Number Of Poles3

Depth6.81 in (172.97 mm)

For Use WithPlug ACP1034CD Appleton Powe...

Disconnect TypeNon-fusible disconnect switc...

Enclosure Rating NEMA 3RNEMA 1

Wire Configuration4-wire

Height21.85 in (554.99 mm)

9080LBA365112
4 in stock
9080LBA365112
Schneider Electric

Schneider Electric - 9080LBA365112

ProductPower Distribution Block

Width-

Phase-

Number Of Poles3

Depth-

For Use With-

Disconnect Type-

Enclosure Rating NEMA 3R-

Wire Configuration-

Height-

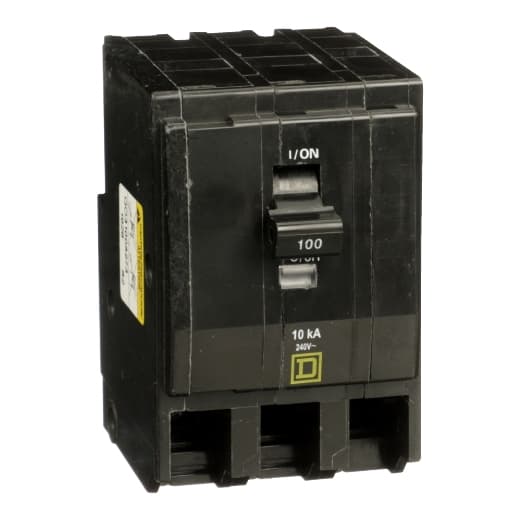

QO31005273
