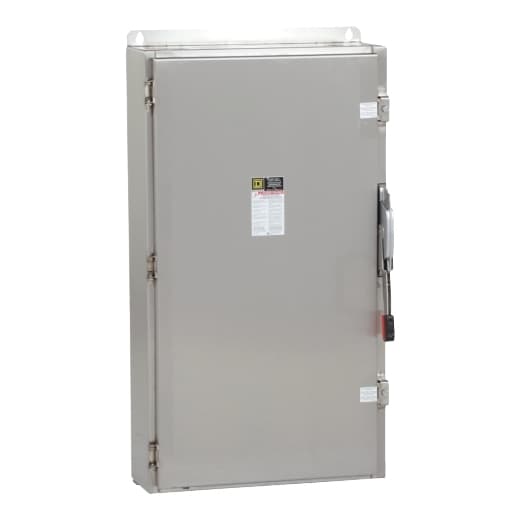

HU365DS Schneider Electric Industrial Automation Components

HU365DS on Powermatic Associates
Schneider Electric

Part#:HU365DS

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - HU365DS

Product Details

  • Number Of Poles
    3
  • Width
    26.25 in (666.75 mm)
  • Current Rating
    400 A
  • Wire Size
    AWG 1/0...750 kcmil copper or aluminium
  • Phase
    3 phase
  • Tightening Torque
    550 lbf.in (62.14 N.m) (AWG 1/0...750 kcmil)
  • Voltage Rating
    600 V AC/DC
  • Net Weight
    169.98 lb(US) (77.1 kg)
  • Enclosure Rating
    NEMA 4/4X/5 stainless steel 304
  • Height
    46.25 in (1174.75 mm)
  • Disconnect Type
    Non-fusible disconnect
  • Depth
    10.13 in (257.30 mm)
  • Factory Installed Neutral
    None
  • Product
    Single Throw Safety Switch
  • Wiring Configuration
    3-wire
  • Duty Rating
    Heavy duty
  • Mounting Type
    Surface
  • Device Application
    Heavy application
  • Electrical Connection
    Lugs
  • Maximum Horse Power Rating
    125 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 250 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 350 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 50 hp 250 V at DC 50 hp 600 V at DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HU365DS on Powermatic Associates is $14,294.00. Order now.
