ILA2T572TC1F0 Schneider Electric Industrial Automation Components

ILA2T572TC1F0 on Powermatic Associates
Schneider Electric

Part#:ILA2T572TC1F0

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

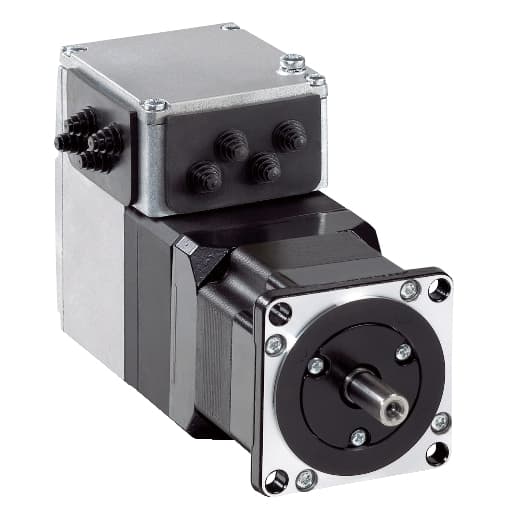

Schneider Electric ILA2T572TC1F0 is a DC servo motor within the Servo motors sub-range, featuring an integrated servo drive and DC motor. It is designed with a single-turn encoder (16384ppr), a smooth shaft, a holding brake, and a double (2) motor stack optimized for high rotation speed and low torque. The connection is facilitated through an industrial connector, and it supports the Modbus TCP communication protocol. For safety, it includes the Safe Torque OFF (STO) protection function. This servo motor operates on a supply voltage of 24Vdc to 48Vdc and is mounted via a 57x57mm flange. It measures 92.2 mm in height, 57.2 mm in width, and 209.3 mm in depth. The maximum torque is rated at 0.57Nm, with a moment of inertia of 0.243kg.cm^2. It can achieve rotational speeds of 3000rpm at 24Vdc and 5100rpm at 48Vdc, with a stall torque of 0.85Nm.

Product Details

  • Accuracy Error
    +/- 0.05 °
  • Nominal Torque
    5.04 lbf.in (0.57 N.m)
  • Circle Diameter Of The Mounting Holes
    2.62 in (66.6 mm)
  • Associated Fuse Rating
    16 A
  • Continuous Stall Torque
    5.04 lbf.in (0.57 N.m)
  • Brake Pull-In Power
    10 W
  • Device Short Name
    ILA
  • Mounting Support
    Flange
  • Shaft Diameter
    0.35 in (9 mm)
  • Input/Output Type
    4 signals (each be used as input or output)
  • Motor Type
    AC Synchronous Servo Motor
  • Winding Type
    High speed of rotation and medium torque
  • Centring Collar Diameter
    1.97 in (50 mm)
  • Supply Voltage Limits
    18…55.2 V
  • Brake Application Time
    13 ms
  • Communication Interface
    Modbus TCP, Integrated
  • Transmission Rate
    10, 100 Mbits
  • Centring Collar Depth
    0.06 in (1.6 mm)
  • Peak Stall Torque
    7.52 lbf.in (0.85 N.m)
  • Brake Release Time
    14 ms
  • Range Of Product
    Lexium integrated drive
  • Electrical Connection
    Industrial connector
  • Motor Flange Size
    2.24 in (57 mm)
  • Shaft Length
    0.79 in (20 mm)
  • Network Type
    DC
  • Number Of Motor Stacks
    2
  • Second Shaft
    Without second shaft end
  • Discrete Output Voltage
    23...25 V
  • Maximum Radial Force Fr
    107 N
  • Type Of Cooling
    Natural convection
  • Product Or Component Type
    Motion integrated drive
  • Length
    8.24 in (209.3 mm)
  • Gear Box Type
    Without
  • Feedback Type
    Single turn encoder
  • Voltage State 0 Guaranteed
    -3...4.5 V
  • Rotor Inertia
    0.243 kg.cm²
  • Phase
    Single phase
  • Holding Torque
    10.62 lbf.in (1.2 N.m) holding brake
  • Number Of Mounting Holes
    4
  • Shaft End
    Untapped
  • Voltage State 1 Guaranteed
    15...30 V
  • Speed Feedback Resolution
    16384 points/turn
  • Holding Brake
    With
  • Number Of Motor Poles
    6
  • Mounting Holes Diameter
    0.20 in (5.2 mm)
  • Commissioning Interface
    RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
  • Net Weight
    3.75 lb(US) (1.7 kg)
  • Marking
    CE
  • Service Life In Hours
    20000 h bearing
  • Current Consumption
    7500 mA maximum continuous 9000 mA peak
  • Protection Type
    Overload of output voltage Short circuit of the output voltage Safe torque off
  • Maximum Switching Current
    100 mA per output 200 mA total
  • Discrete Input Current
    10 mA at 24 V safety input 2 mA at 24 V 24 V signal interface
  • Maximum Axial Force Fa
    104 N force pressure) 104 N tensile force)
  • [Us] Rated Supply Voltage
    24 V 48 V
  • Nominal Speed
    3000 rpm 24 V 5100 rpm 48 V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
