Part#:ILM0702P12A0000

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

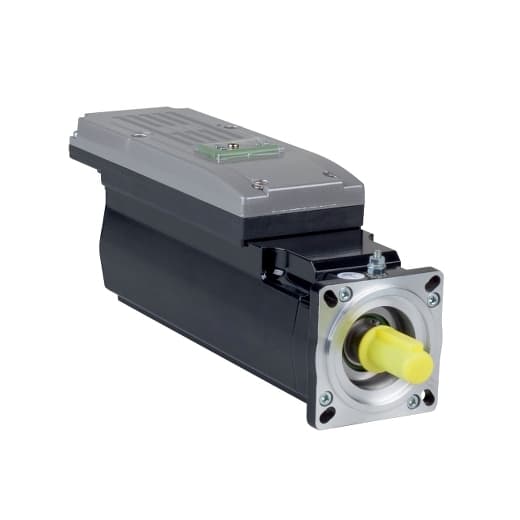

Schneider Electric ILM0702P12A0000 is an AC servo motor within the Servo motors sub-range, featuring an integrated servo drive and motor. It is designed with an absolute multi-turn 128ppr SinCos encoder and a parallel key shaft with double (2) motor stacks. The communication protocol supported is HIPERFACE. This motor has a rated current of 1.5A and is mounted via a 70x70mm flange. The net width of the motor is 70 mm, and it offers a degree of protection of IP54. It delivers a torque of 1.15Nm, with a rated active power of 0.72kW / 720W, and can achieve a maximum torque of 7.6Nm. The rotational speed of the motor is 6000rpm, and it has a stall torque of 1.7Nm.

Product Details

  • Continuous Stall Torque
    15.05 lbf.in (1.7 N.m)
  • Maximum Current Irms
    11.8 A
  • Mounting Support
    International standard flange
  • Type Of Cooling
    Natural convection
  • Maximum Axial Force Fa
    0.2 x Fr
  • Nominal Output Power
    720 W
  • Second Shaft
    Without second shaft end
  • Torque Constant
    0.76 N.m/A 248 °F (120 °C)
  • Number Of Motor Stacks
    2
  • Shaft Length
    0.91 in (23 mm)
  • Number Of Motor Poles
    6
  • Mounting Holes Diameter
    0.22 in (5.5 mm)
  • Peak Stall Torque
    67.27 lbf.in (7.6 N.m)
  • Back Emf Constant
    48 V/krpm 68 °F (20 °C)
  • Centring Collar Diameter
    2.36 in (60 mm)
  • Continuous Stall Current
    2.5 A
  • Shaft Diameter
    0.43 in (11 mm)
  • [Us] Rated Supply Voltage
    250...700 V
  • Nominal Speed
    6000 rpm
  • Holding Brake
    Without
  • Centring Collar Depth
    0.10 in (2.5 mm)
  • Nominal Torque
    10.18 lbf.in (1.15 N.m)
  • Shaft End
    Keyed
  • Feedback Type
    Absolute multiturn SinCos Hiperface
  • Number Of Mounting Holes
    4
  • Device Short Name
    ILM
  • Line Rated Current
    1.5 A
  • Motor Flange Size
    2.76 in (70 mm)
  • Length
    8.90 in (226 mm)
  • Product Or Component Type
    Servo motor integrated drive
  • Speed Feedback Resolution
    128 periods
  • Rotor Inertia
    0.41 kg.cm²
  • Net Weight
    7.50 lb(US) (3.4 kg)
  • Circle Diameter Of The Mounting Holes
    3.23 in (82 mm)
  • Range Of Product
    PacDrive 3
  • Key Width
    0.71 in (18 mm)
  • Stator Resistance
    4.2 Ohm 68 °F (20 °C) Ph/Ph 2.92 Ohm 248 °F (120 °C) Ph/N
  • Stator Inductance
    19 mH 68 °F (20 °C) Ph/Ph 9.5 mH 248 °F (120 °C) Ph/N
  • Maximum Radial Force Fr
    710 N 1000 rpm 560 N 2000 rpm 490 N 3000 rpm 450 N 4000 rpm 410 N 5000 rpm 390 N 6000 rpm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ILM0702P12A0000 on Powermatic Associates is $3,883.31. Order now.
