XB5AW31B5 Schneider Electric Industrial Automation Components

XB5AW31B5 on Powermatic Associates
Schneider Electric

Part#:XB5AW31B5

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

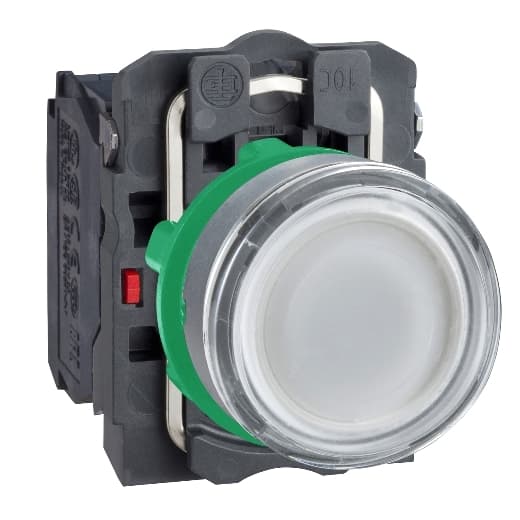

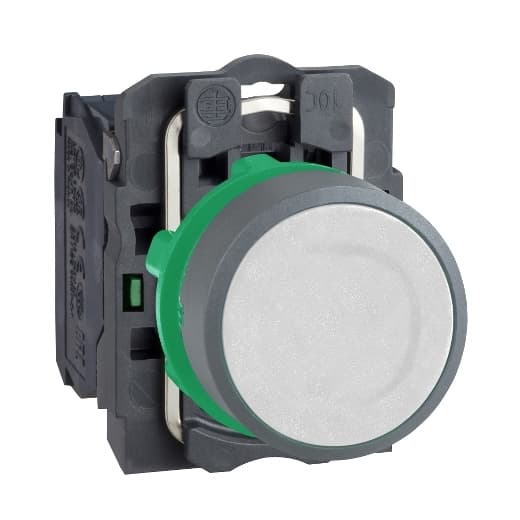

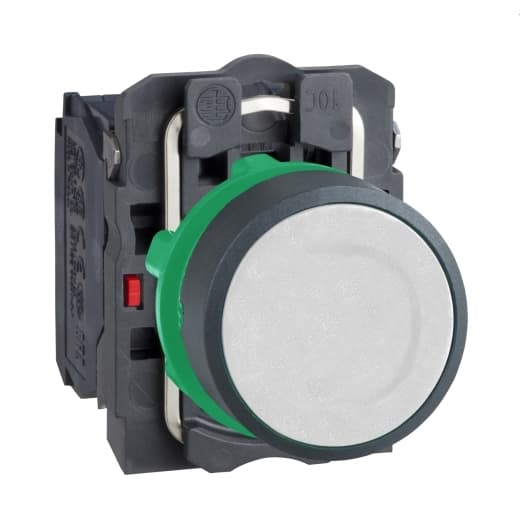

Schneider Electric XB5AW31B5 is an illuminated flush push-button designed for automation applications, part of the XB5 range. This push-button features a plastic body and bezel with a round shape and a plain lens. It offers a degree of protection rated at IP66, making it suitable for use in environments where dust and water resistance are necessary. The push-button operates on a spring-return (impulse/momentary) mechanism and is equipped with integral LED illumination, with the light color being white. It has a diameter of 22 mm and is designed to work with a supply voltage of 24 V, accommodating both AC and DC sources. The XB5AW31B5 includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts for versatile connectivity options. The type of terminals provided for electrical connections is screw-clamp. This push-button operates within a network frequency of 50/60 Hz.

Product Details

  • Mounting Diameter
    0.87 in (22 mm)
  • Operator Profile
    White flush, unmarked
  • [Us] Rated Supply Voltage
    24 V
  • Contacts Usage
    Standard contacts
  • [Ith] Conventional Free Air Thermal Current
    10 A EN/IEC 60947-5-1
  • Sale Per Indivisible Quantity
    1
  • Height
    1.65 in (42 mm)
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV EN/IEC 60947-1
  • Head Type
    Standard
  • Device Presentation
    Complete product
  • Range Of Product
    Harmony XB5
  • Contacts Type And Composition
    1 NO + 1 NC
  • Product Or Component Type
    Illuminated push-button
  • Positive Opening
    With EN/IEC 60947-5-1 appendix K
  • Signalling Type
    Steady
  • Shape Of Signaling Unit Head
    Round
  • Operator Additional Information
    With plain lens
  • Width
    1.18 in (30 mm)
  • Mechanical Durability
    10000000 cycles
  • Device Short Name
    XB5
  • Light Source
    Protected LED
  • Net Weight
    0.12 lb(US) (0.056 kg)
  • Contacts Material
    Silver alloy (Ag/Ni)
  • Contact Operation
    Slow-break
  • Type Of Operator
    spring return
  • Depth
    2.24 in (57 mm)
  • Tightening Torque
    7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
  • Fixing Collar Material
    Plastic
  • Resistance To High Pressure Washer
    1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
  • Short-Circuit Protection
    10 A cartridge fuse gG EN/IEC 60947-5-1
  • Current Consumption
    18 mA
  • Bezel Material
    Dark grey plastic
  • Bulb Base
    Integral LED
  • Cap/Operator Or Lens Colour
    White
  • [Ui] Rated Insulation Voltage
    600 V 3)EN/IEC 60947-1
  • Surge Withstand
    1 kV IEC 61000-4-5
  • Service Life
    100000 h at rated voltage and 25 °C
  • Terminals Description ISO N°1
    (13-14)NO (21-22)NC
  • Operating Force
    3.5 N NC changing electrical state 3.8 N
  • Supply Voltage Limits
    19.2…30 V DC 21.6…26.4 V AC
  • Electrical Reliability
    Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
  • Connections - Terminals
    Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
  • Operating Travel
    0.06 in (1.5 mm) NC changing electrical state) 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel)
  • Shape Of Screw Head
    Cross compatible with Philips no 1 screwdriver Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm
  • Electrical Durability
    1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycle
  • [Ie] Rated Operational Current
    3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A6

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of XB5AW31B5 on Powermatic Associates is $119.00. Order now.
