ILM0703P12A0000 Schneider Electric Industrial Automation Components

ILM0703P12A0000 on Powermatic Associates
Schneider Electric

Part#:ILM0703P12A0000

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

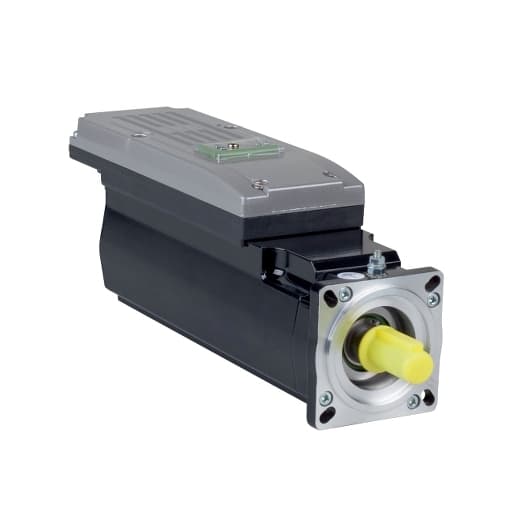

Schneider Electric ILM0703P12A0000 is an AC servo motor within the Servo motors sub-range, featuring an integrated servo drive and motor. It is designed with an absolute multi-turn 128ppr SinCos encoder and a parallel key shaft with triple (3) motor stacks. The communication protocol supported is HIPERFACE. This motor has a rated current of 1.5A and is mounted using a 70x70mm flange. The net width of the motor is 70 mm, and it has a degree of protection rated at IP54. It delivers a torque of 1.15Nm, with a rated active power of 0.72kW or 720W. The maximum torque capability is 8.7Nm, and it can achieve a rotational speed of up to 6000rpm, with a stall torque of 2.2Nm.

Product Details

  • Continuous Stall Current
    3 A
  • Line Rated Current
    1.5 A
  • Holding Brake
    Without
  • Number Of Mounting Holes
    4
  • Product Or Component Type
    Servo motor integrated drive
  • [Us] Rated Supply Voltage
    250...700 V
  • Second Shaft
    Without second shaft end
  • Torque Constant
    0.76 N.m/A 248 °F (120 °C)
  • Type Of Cooling
    Natural convection
  • Net Weight
    9.26 lb(US) (4.2 kg)
  • Continuous Stall Torque
    19.47 lbf.in (2.2 N.m)
  • Shaft End
    Keyed
  • Speed Feedback Resolution
    128 periods
  • Centring Collar Diameter
    2.36 in (60 mm)
  • Device Short Name
    ILM
  • Shaft Length
    1.18 in (30 mm)
  • Motor Flange Size
    2.76 in (70 mm)
  • Length
    10.20 in (259 mm)
  • Nominal Output Power
    720 W
  • Nominal Speed
    6000 rpm
  • Feedback Type
    Absolute multiturn SinCos Hiperface
  • Back Emf Constant
    49 V/krpm 68 °F (20 °C)
  • Maximum Axial Force Fa
    0.2 x Fr
  • Circle Diameter Of The Mounting Holes
    3.23 in (82 mm)
  • Nominal Torque
    10.18 lbf.in (1.15 N.m)
  • Shaft Diameter
    0.55 in (14 mm)
  • Mounting Support
    International standard flange
  • Mounting Holes Diameter
    0.22 in (5.5 mm)
  • Range Of Product
    PacDrive 3
  • Peak Stall Torque
    77.00 lbf.in (8.7 N.m)
  • Key Width
    0.79 in (20 mm)
  • Number Of Motor Poles
    6
  • Centring Collar Depth
    0.10 in (2.5 mm)
  • Maximum Current Irms
    12 A
  • Rotor Inertia
    0.58 kg.cm²
  • Number Of Motor Stacks
    3
  • Stator Resistance
    2.7 Ohm 68 °F (20 °C) Ph/Ph 1.88 Ohm 248 °F (120 °C) Ph/N
  • Stator Inductance
    13 mH 68 °F (20 °C) Ph/Ph 6.5 mH 248 °F (120 °C) Ph/N
  • Maximum Radial Force Fr
    730 N 1000 rpm 580 N 2000 rpm 510 N 3000 rpm 460 N 4000 rpm 430 N 5000 rpm 400 N 6000 rpm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ILM0703P12A0000 on Powermatic Associates is $3,974.56. Order now.
