JDL36175 Schneider Electric Industrial Automation Components

What is the price of JDL36175?
Purchase the JDL36175 from Powermatic Associates at the price of $2,730.00. Order today.

Out if stock but available for backorder.

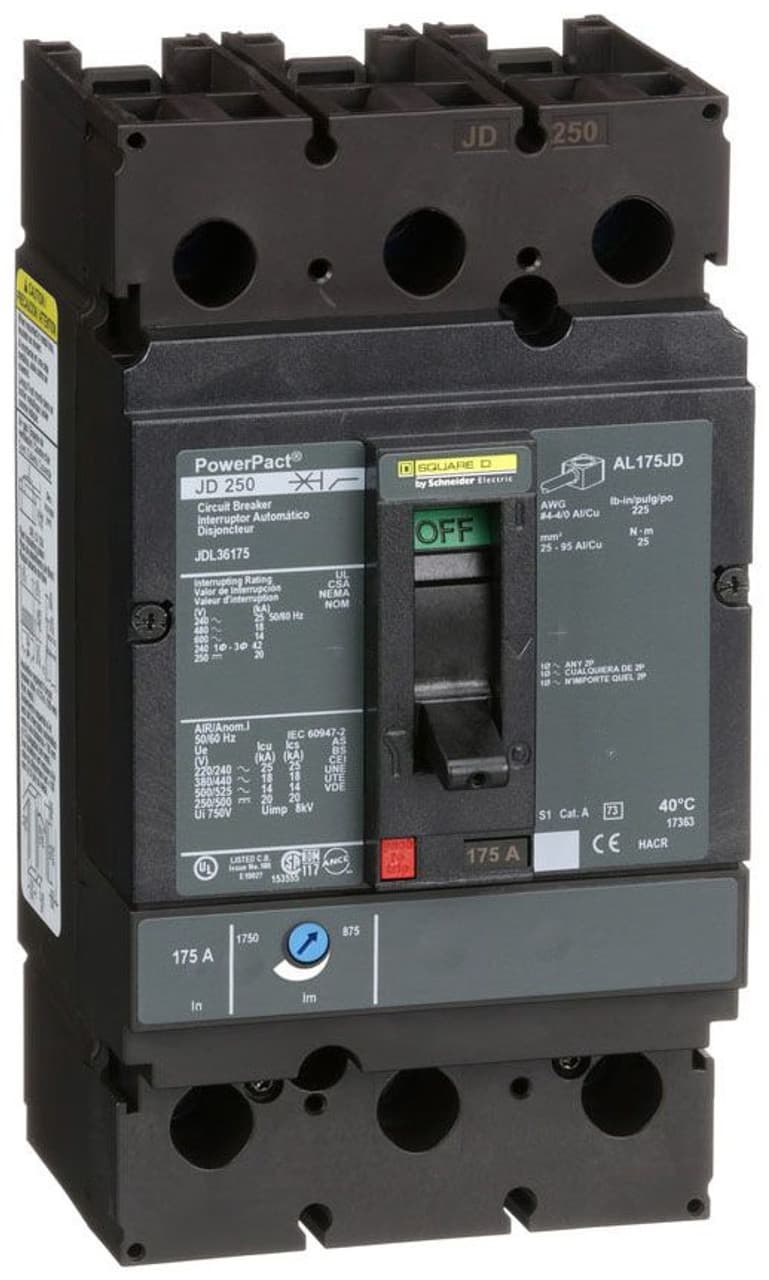

Square D by Schneider Electric JDL36175 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT JDL sub-range, featuring a PowerPact J-Frame 250 TMD 3P 175A 600Vac 14kA design with lugs on both load and line sides for connection. This 3-pole circuit breaker offers thermal protection for overload scenarios and magnetic protection for short-circuit conditions. It has a rated current of 175A, with a rated insulation voltage (Ui) of 750 V and a rated voltage (AC) of 600Vac 600Y/347Vac. The unit is designed for individual mounting on a plate, with dimensions of 191 mm in height, 105 mm in width, and 127 mm in depth. It features an IP40 degree of protection and operates manually via a toggle. Protection settings include over-current fixed at 175A and short-circuit pickup current adjustable between 875A and 1750A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 175 AT, with a frame current rating of 250 AF. Its short circuit breaking rating varies by voltage, including 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, 14kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all in accordance with UL489 standards. The trip unit type is thermal-magnetic (adjustable) without a display, and it falls under utilisation category A.
